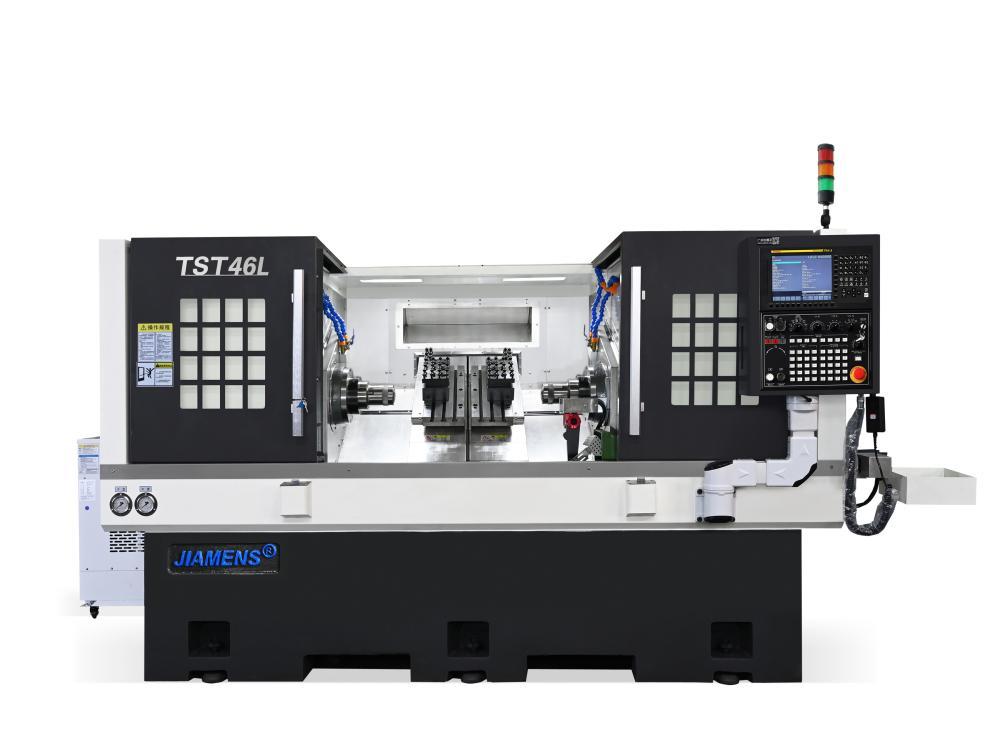

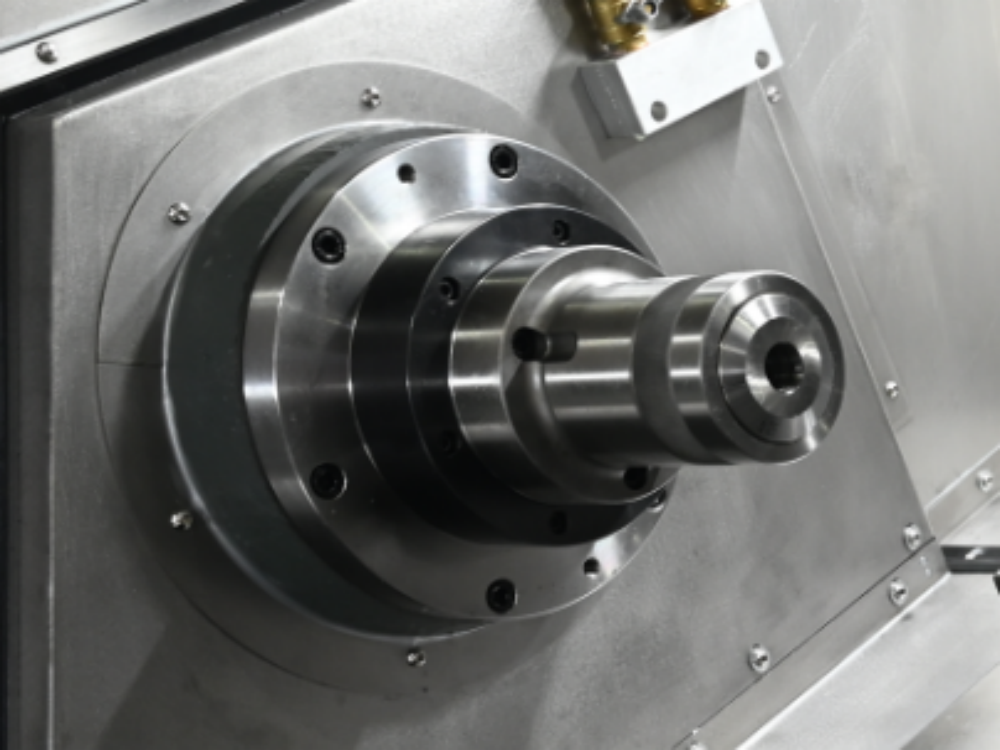

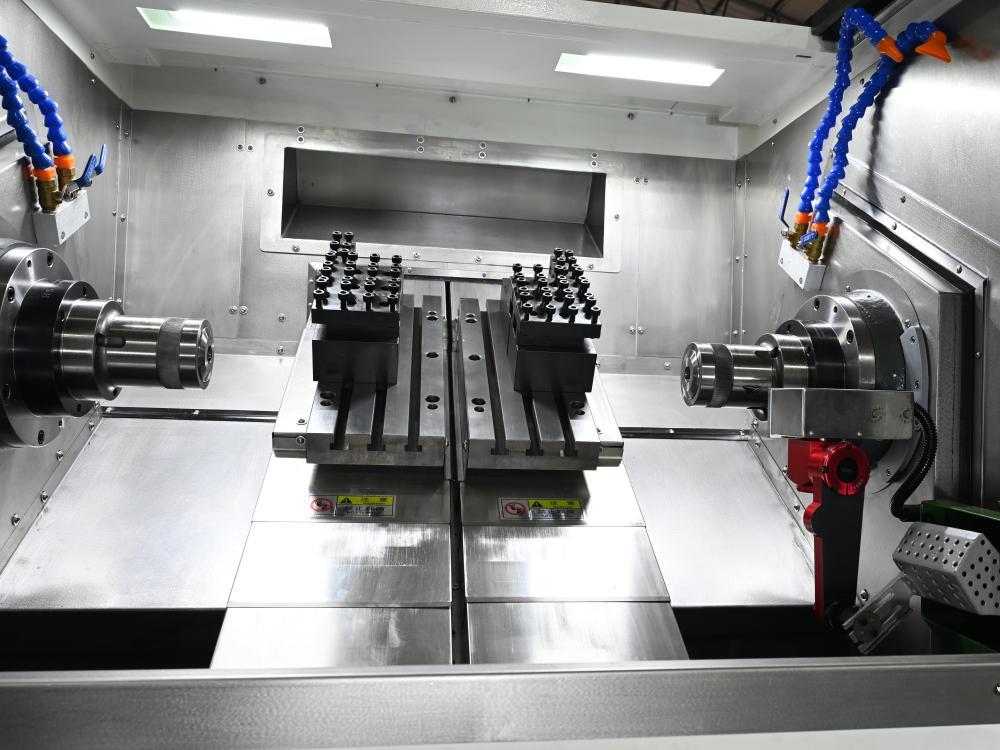

The TST46L is a twin-spindle gang-tool CNC lathe developed by JIAMENS based on standardized and modular design concepts, featuring a bed structure of outstanding rigidity and stability. It adopts a 30° slant-bed structure and is equipped with two high-speed motorized spindles.
Advantages:
1.Rapid machining of complex parts: With its twin spindles, the lathe can carry out multiple processes in parallel—such as drilling, reaming and turning—so that secondary operations are completed in a single setup.
2.High degree of automation: Under computerized programming control, the twin-spindle CNC lathe realizes fully automated machining, enhancing production efficiency while reducing operating costs.
3.High precision: Both motorized spindles are fitted with high-precision CNC systems, guaranteeing the high-accuracy machining requirements of the workpieces.
The TST46L twin-spindle CNC lathe serves a broad spectrum of applications, encompassing the machining of components across the automotive, aviation, medical-device and electronics sectors.
| Parameter | Optional Equipment | |||
| Item | Name | Value | Item | Options |
| Capacity |
Swing Over Bed(mm) |
Φ300 |

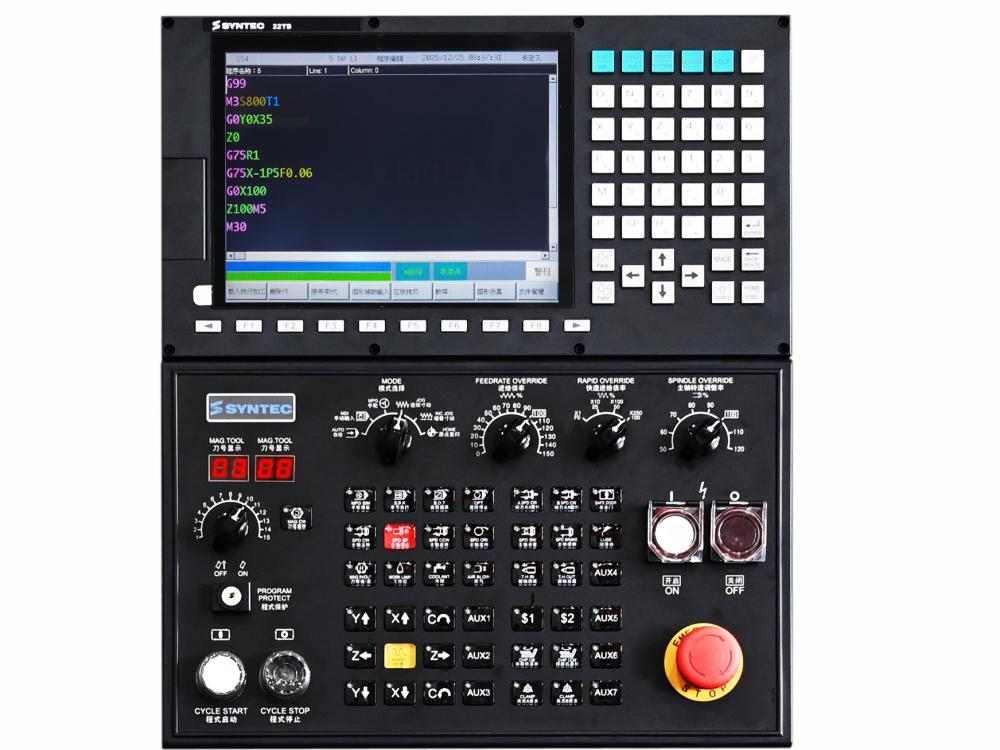

CNC SYSTEM |
FANUC |
|
SYNTEC |
||||
| Max. Turning Length(mm) |
120 |
GSK |
||
Spindle |
VOLIS |
|||
| Travel | X-Axis Travel: X1/X2(mm) | 950 |
HAINA |
|
| Z-Axis Travel: Z1/Z2(mm) | 310 |
DENEARN |
||
| Spindle | Spindle Nose Type | A2-5 | Ball Linear Guideway |
PMI |
| Spindle Bore Diameter(mm) | Φ56 |
HIWIN |
||
| Max. Spindle Speed(rpm) | 6000 | Ball Screw |
PMI |
|
| Spindle Motor Power(kW) | 11 |
HIWIN |
||
| Chuck & Rotary Cylinder Specification | 6" |
|
Truss Manipulator |
|
| Accuracy | X, Z Axis Positioning(mm) | ±0.005 |
Tool Setter |
|
| X, Z Axis Positioning Repeatability(mm) | ±0.003 |
Articulated Robot |
||
| Others |
Tool Shank Size | □20*20 |
Parts Catcher |
|
| Boring Bar Size(mm) |
Φ25 |
Automatic Chip Conveyor |
||
| Size/Weight |
Machine Dimensions (L×W×H)(mm) |
2770*1745*1630 |
Automatic Feeding Machine |
|
|
Net Weight(kg) |
3800 |
|||
