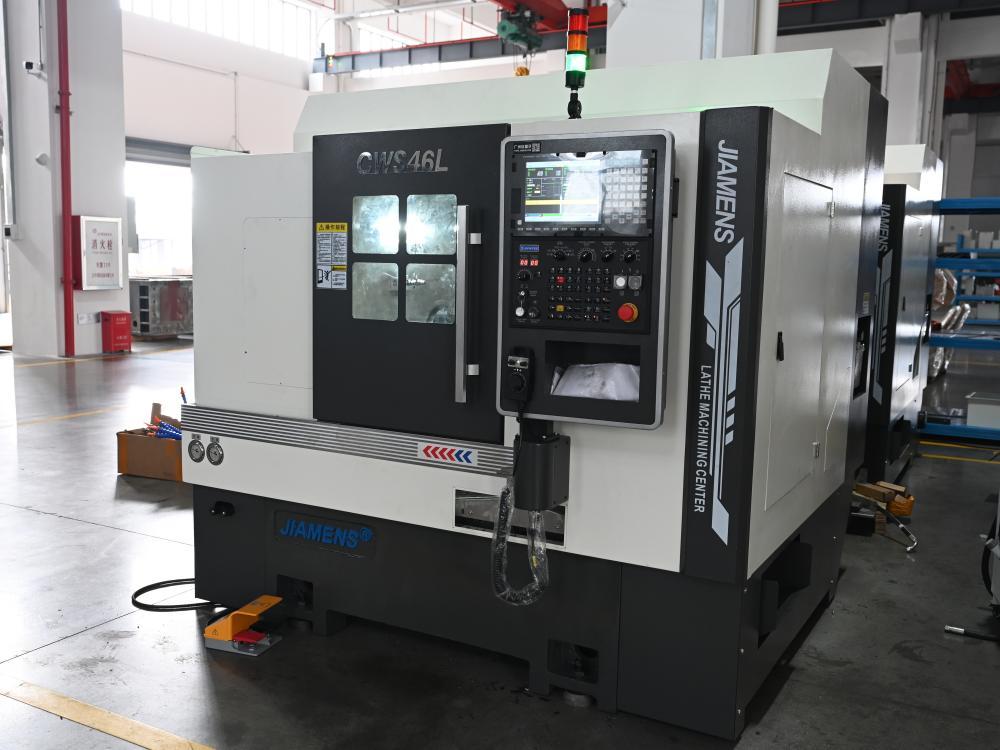

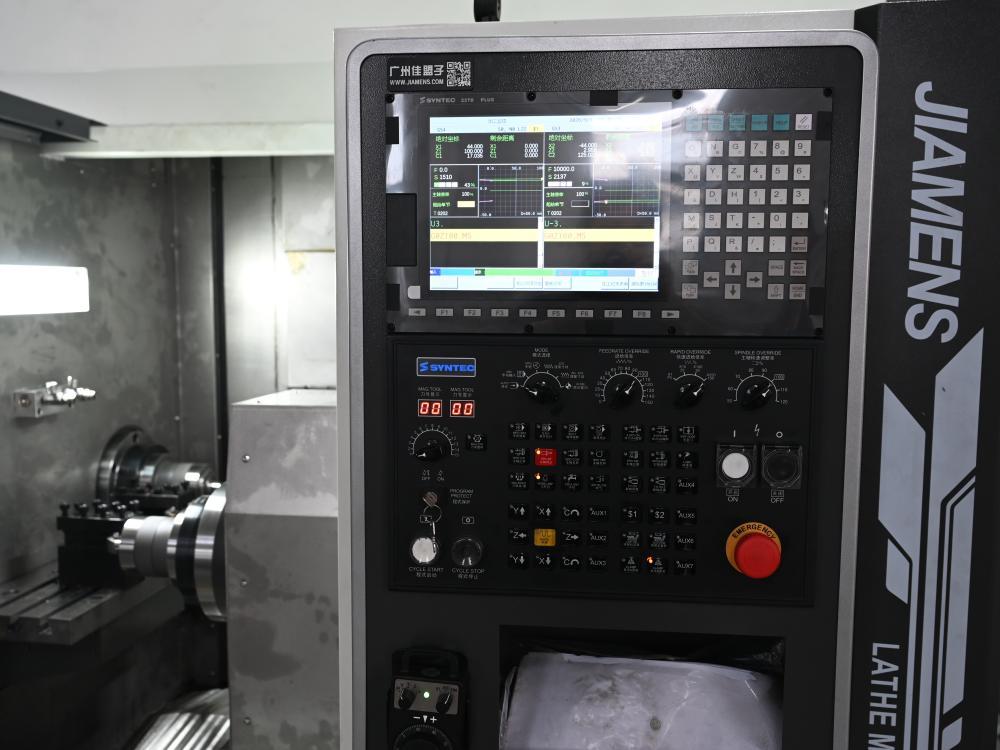

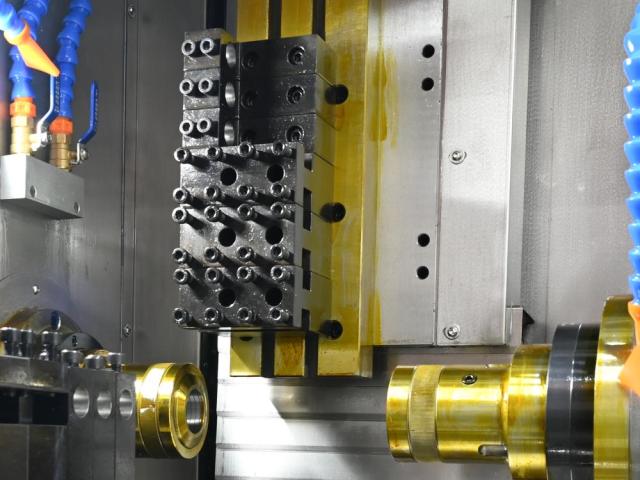

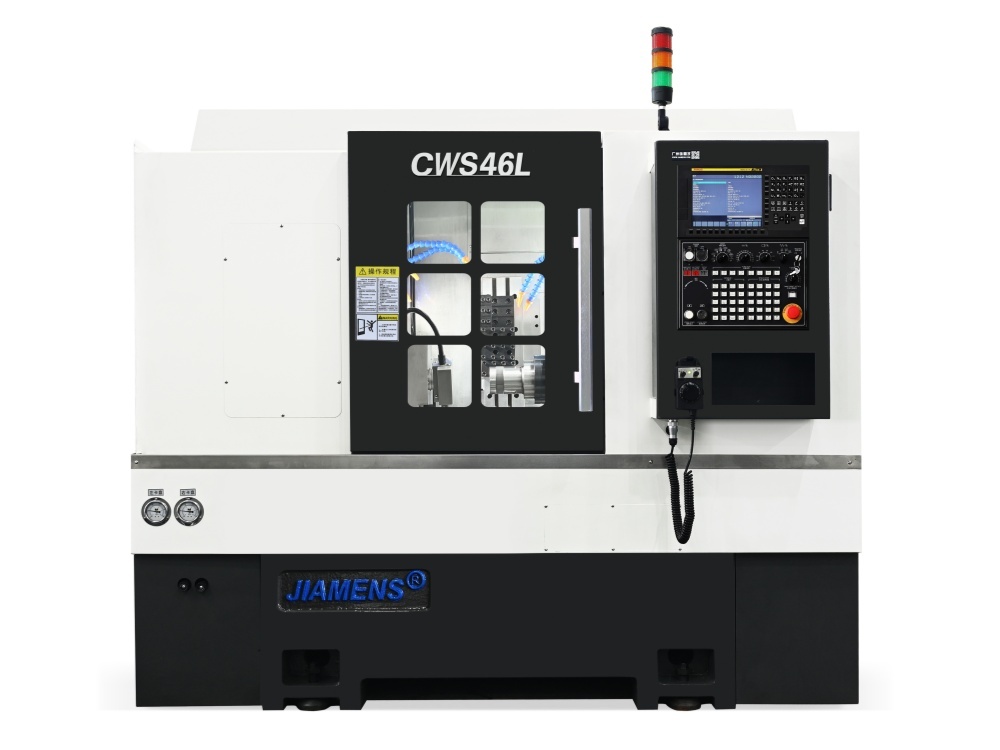

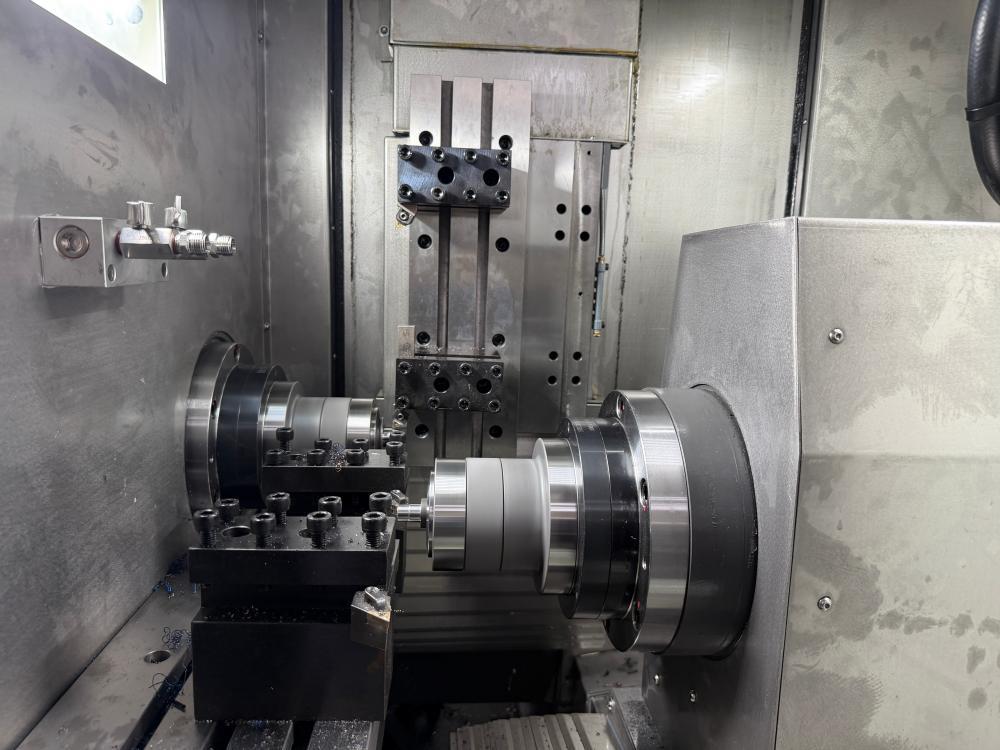

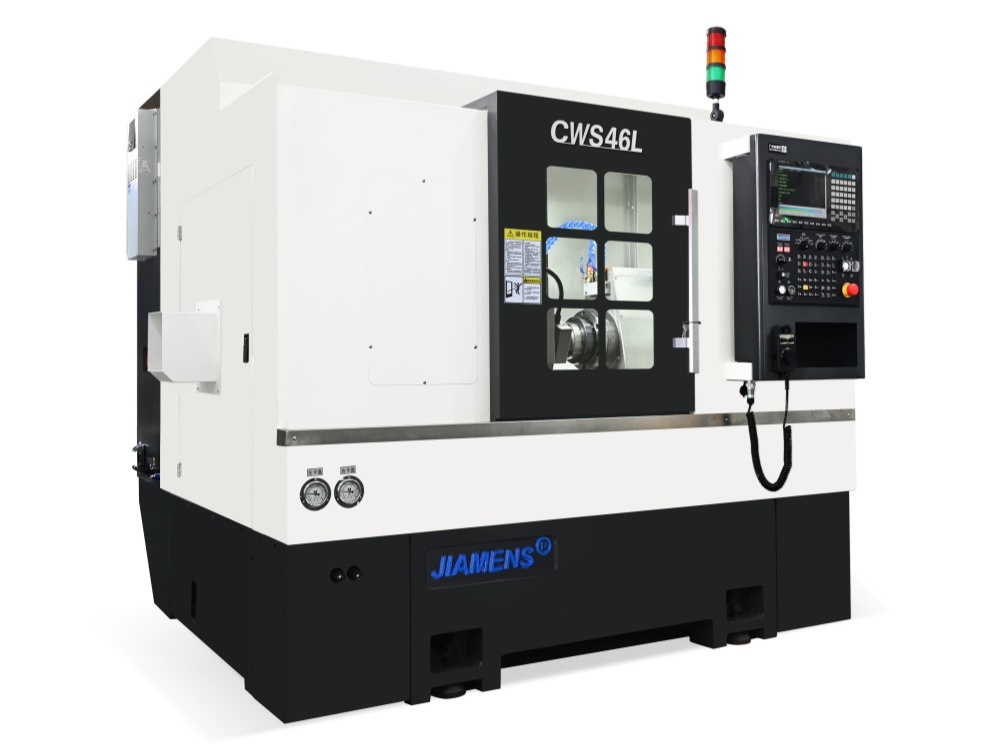

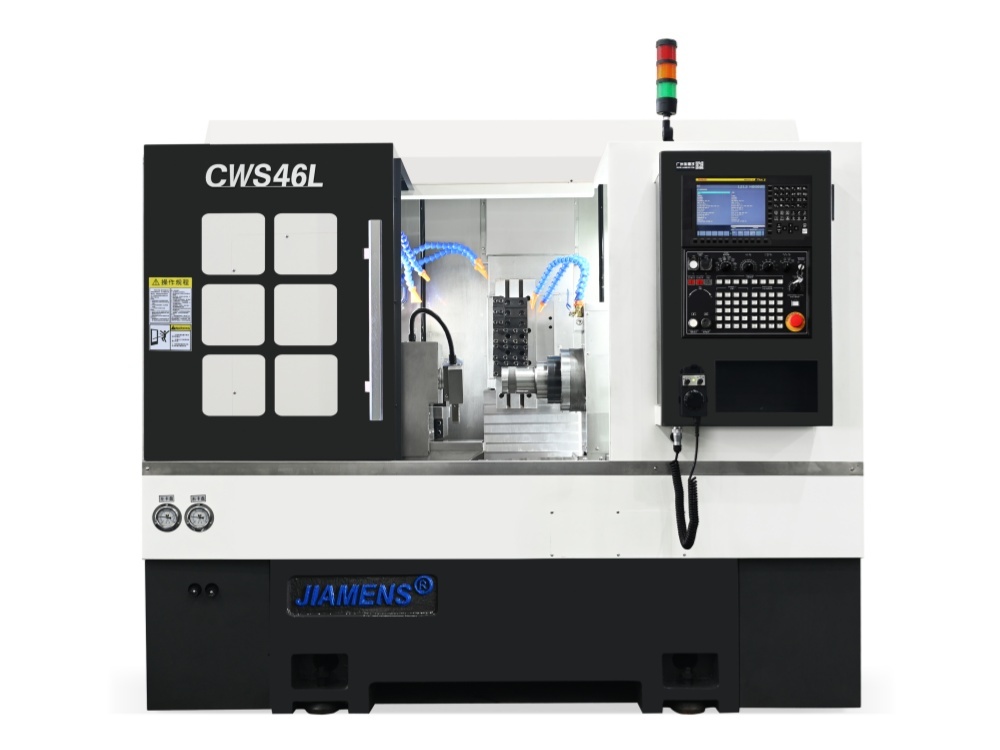

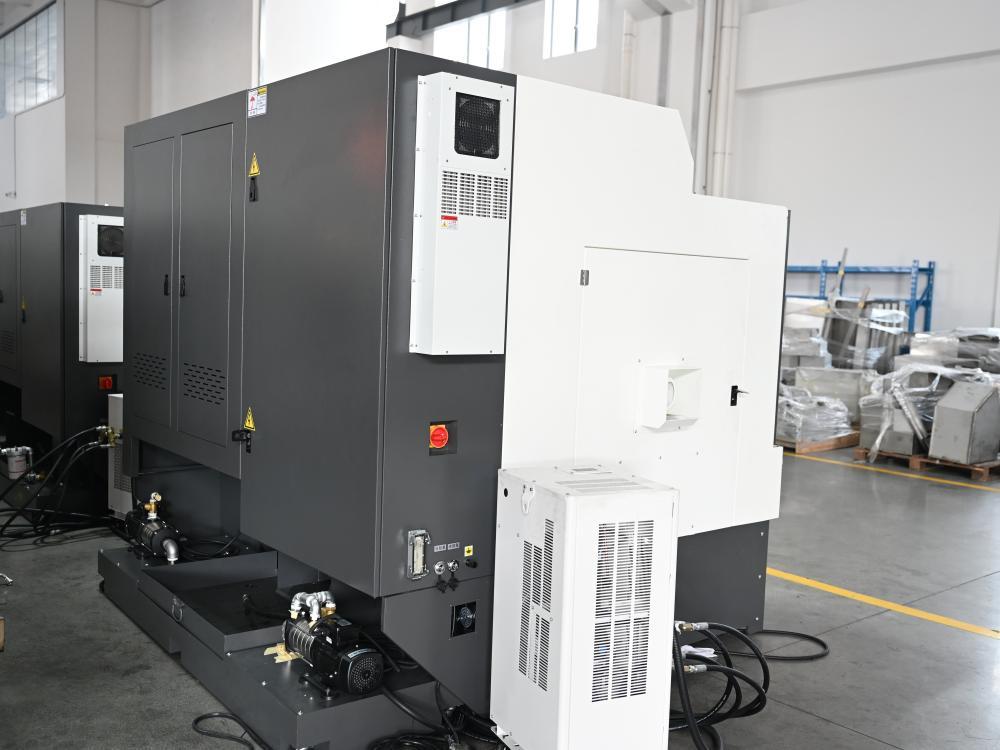

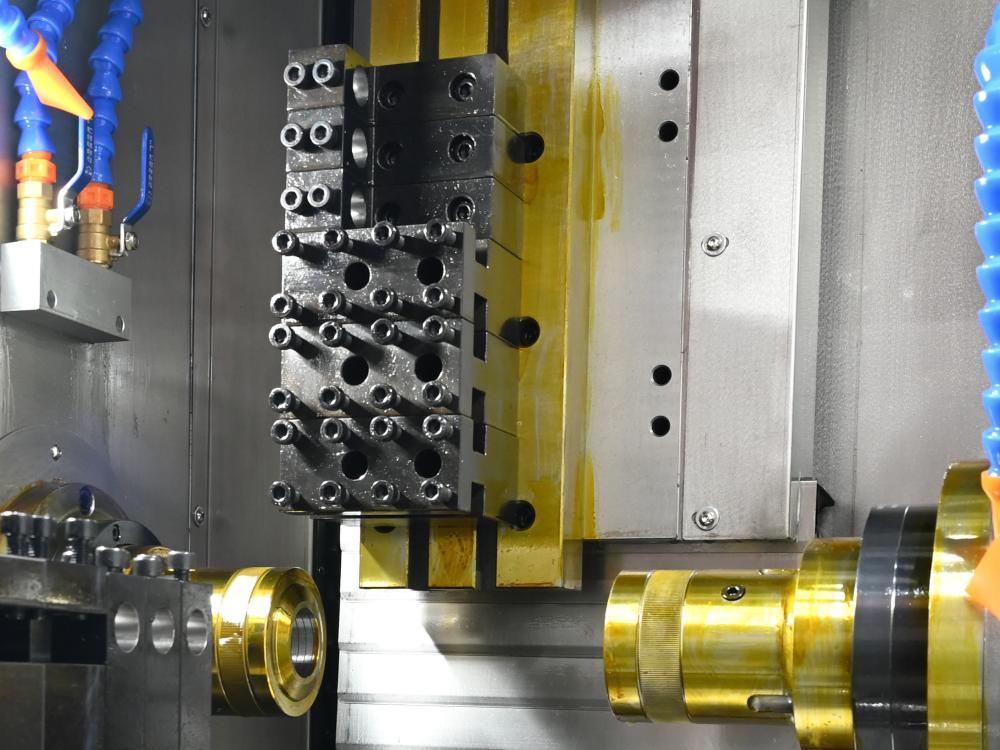

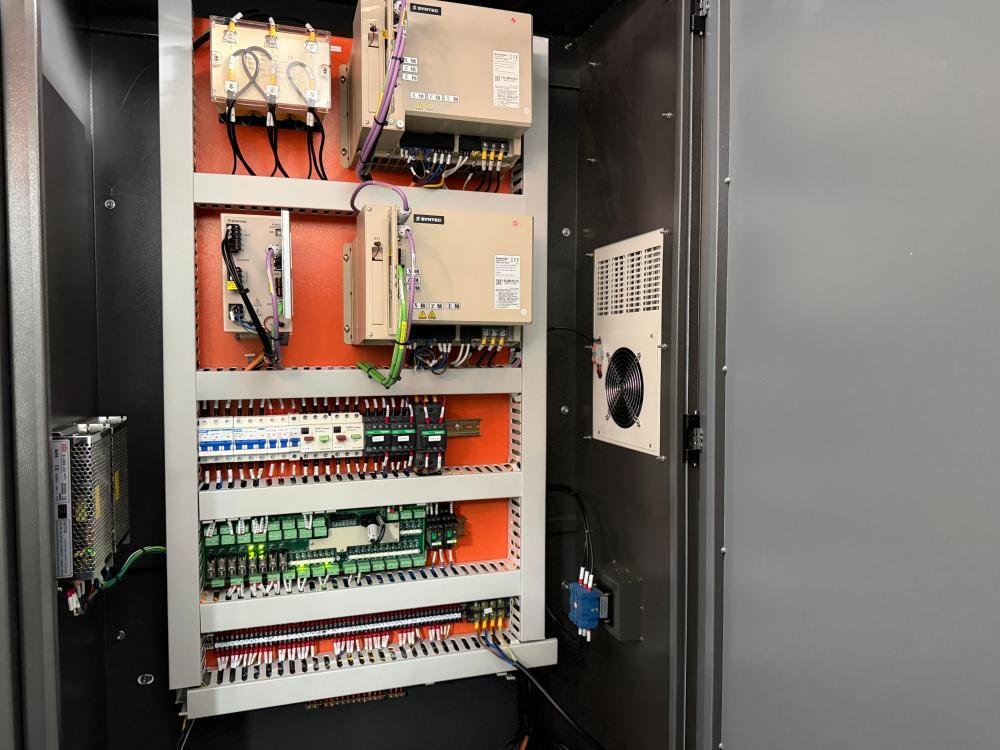

The CWS46L is an offset dual-spindle dual-gang-tool Horizontal CNC Lathe developed by JIAMENS based on standardized and modular design concepts. It adopts an offset dual-motor-spindle configuration paired with dual gang-tool carriages. Benefiting from the dual motor spindles, the machine can execute multiple machining processes simultaneously, completing secondary operations in a single clamping and enabling highly efficient manufacturing of complex parts. Controlled via CNC programming, it realizes a high degree of production automation, greatly improving production efficiency and reducing operating costs. Both motor spindles are equipped with a high-precision CNC control system, guaranteeing stable high-precision machining for precision components. When matched with an automatic bar feeder and parts receiver, the machine enables fully automatic production management. The CWS46L dual-spindle CNC lathe enjoys a wide range of applications, covering parts processing in automotive, aerospace, medical equipment, electronics and other industries.
| Parameter | Optional Equipment | |||
| Item | Name | Value | Item | Options |
| Capacity | Swing Over Bed(mm) | Φ280 | CNC SYSTEM | FANUC |
| Max. Turning Diameter (Chuck-type parts)(mm) | Φ200 | SYNTEC | ||
| Max. Turning Length(mm) | 200 | GSK | ||
| Max. Bar Capacity through Spindle Bore (mm) |
Φ45 |
Spindle |
VOLIS |
|
| Travel | X-Axis Travel: X1/X2(mm) |
720/800 |
HAINA |
|
| Z-Axis Travel: Z1/Z2(mm) | 280 |
DENEARN |

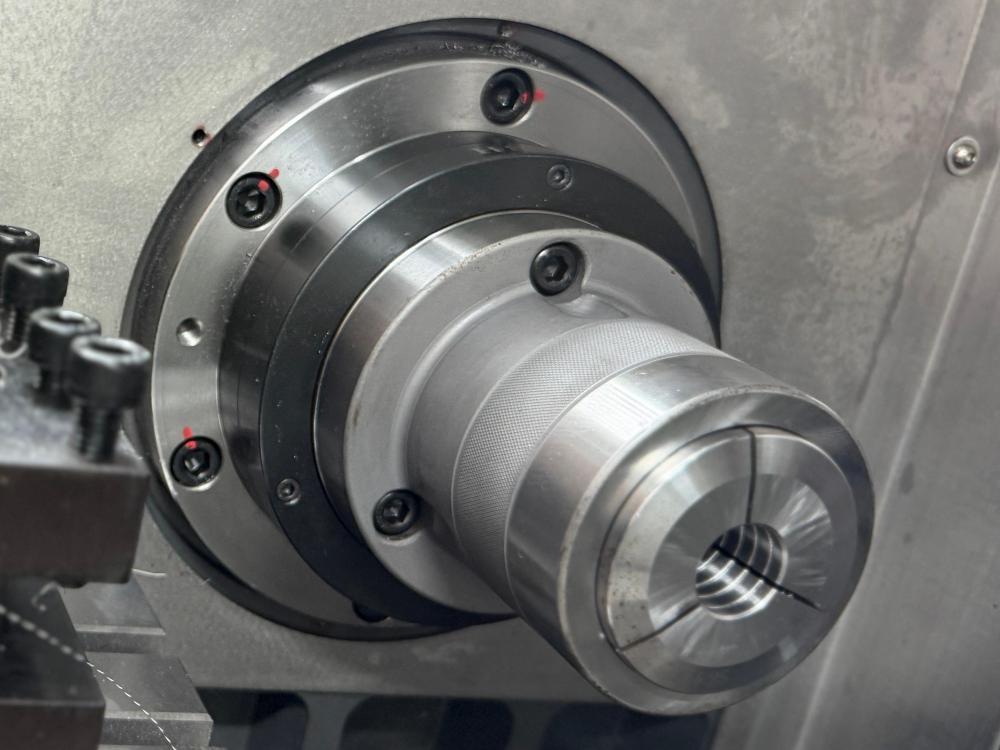

||
| Spindle | Spindle Nose Type | A2-5 | Ball Linear Guideway |
PMI |
| Spindle Bore Diameter(mm) | Φ56 | HIWIN | ||
| Max. Spindle Speed(rpm) | 6000 | Ball Screw |
PMI |
|
| Spindle Motor Power(kW) | 11 |
HIWIN |
||
| Chuck & Rotary Cylinder Specification | 6" | Auxiliary Extension |
Truss Manipulator |
|
| Accuracy | X, Z Axis Positioning(mm) | ±0.005 |
Tool Setter |
|
| X, Z Axis Positioning Repeatability(mm) | ±0.003 |
Articulated Robot |
||
| Others | Tool Shank Size | □20*20 |
Parts Catcher |
|
| Boring Bar Size(mm) | Φ25 |
Automatic Chip Conveyor |
||
| Size/Weight | Machine Dimensions (L×W×H)(mm) | 2430*2240*2060 |
Automatic Feeding Machine |
|
| Net Weight(kg) | 3300 | |||
