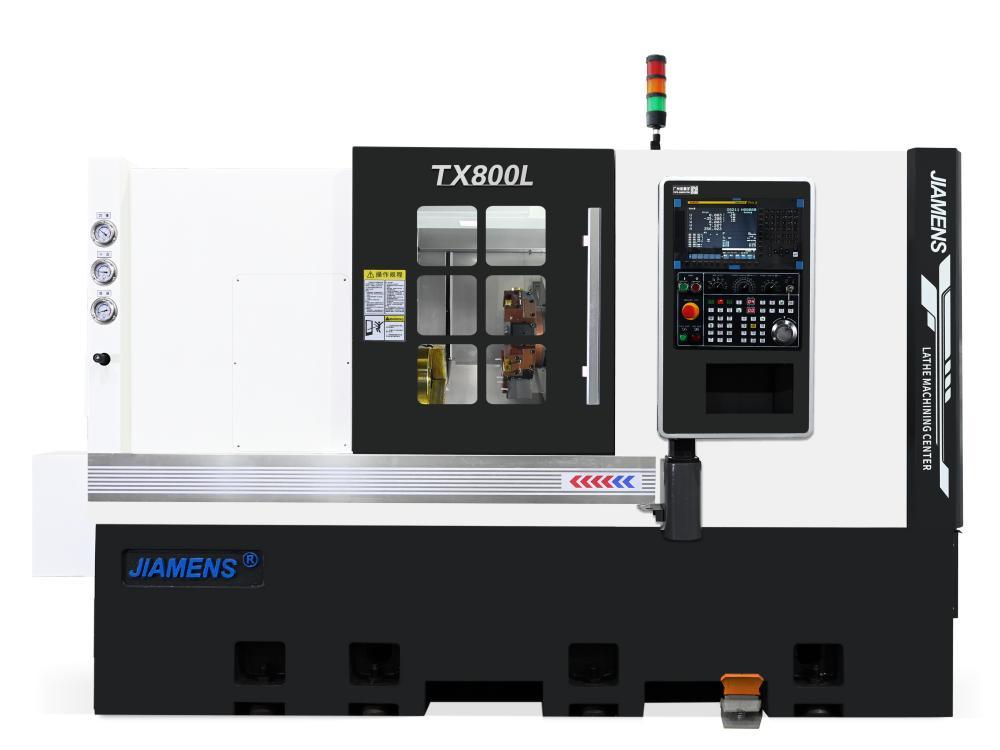

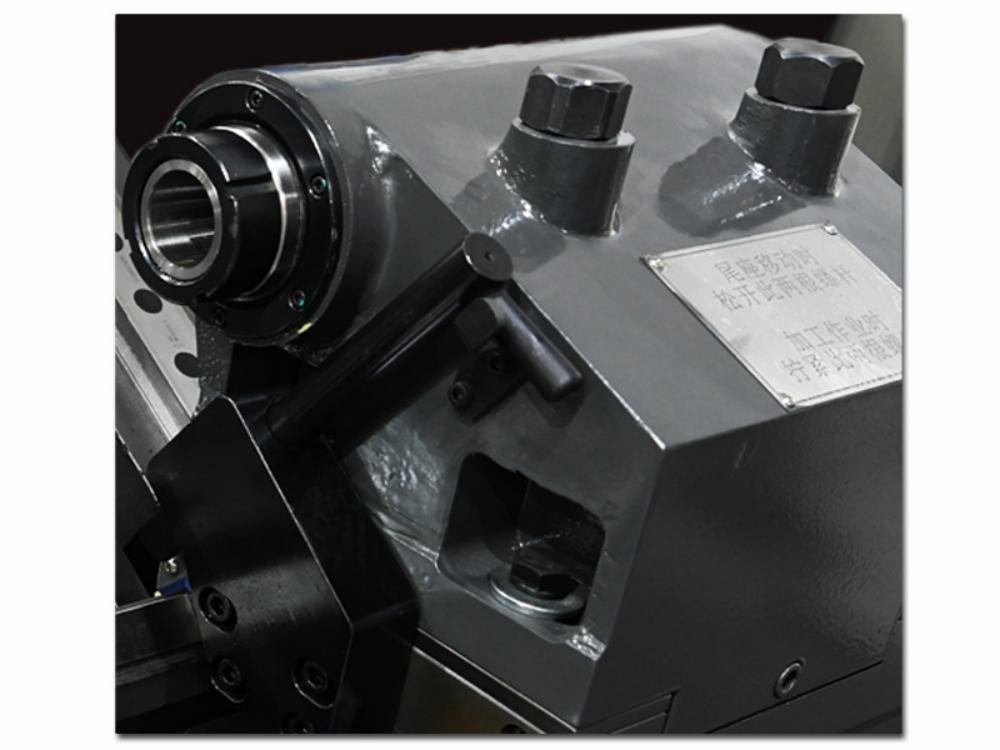

The TX800L is a Multi-functional Turning-Milling Compound Machine with Driven Tool Turret (without Y-axis) developed by JIAMENS based on standardized and modular design concepts. It adopts a 30°slant-bed structure together with a high-rigidity driven tool turret to realize compound machining for turning, milling and cutting operations. The machine is equipped with a high-power, high-torque spindle; the spindle motor is flange-mounted to enhance rigidity, and the machine provides comprehensive high-precision turning functions and automatic control capabilities. Roller linear guideways are equipped, with the Z-axis configured with six-slider roller linear guideways; the tailstock with triangular guideway for traversing movement effectively reduces vibration and deformation, improving the machine's rigidity and machining accuracy. Beyond the standard functions of a CNC lathe, the machine can perform face milling, drilling, tapping, straight-groove milling, helical-groove milling and gear milling. Featuring integrated turning, milling and boring capabilities, it delivers the process philosophy of complete-part-machining in a single clamping.

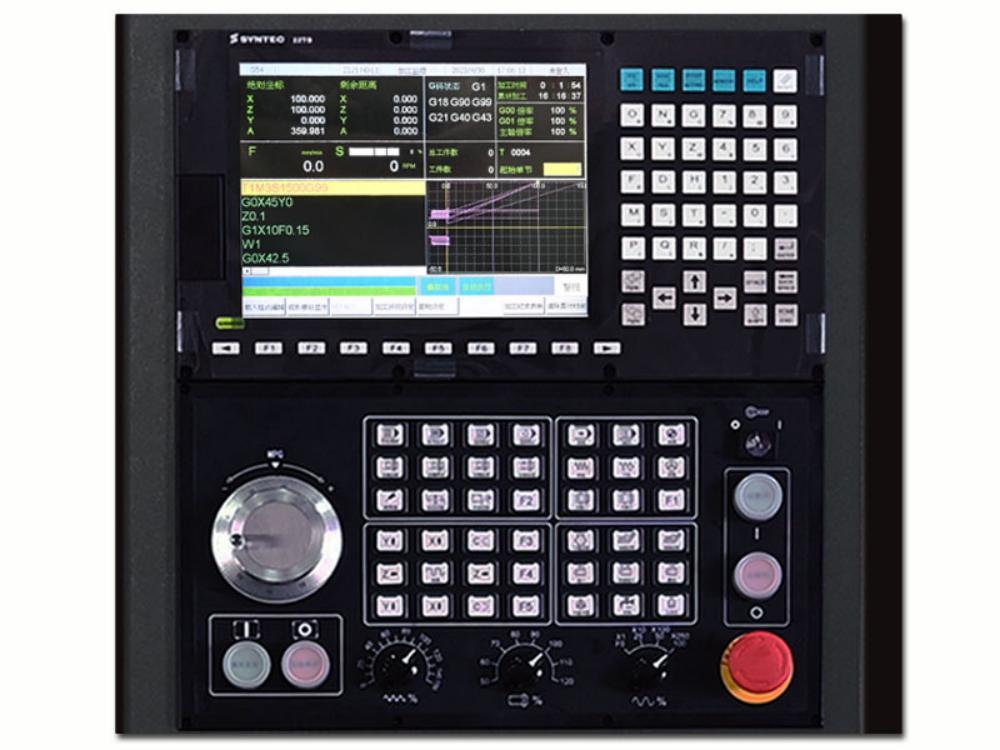

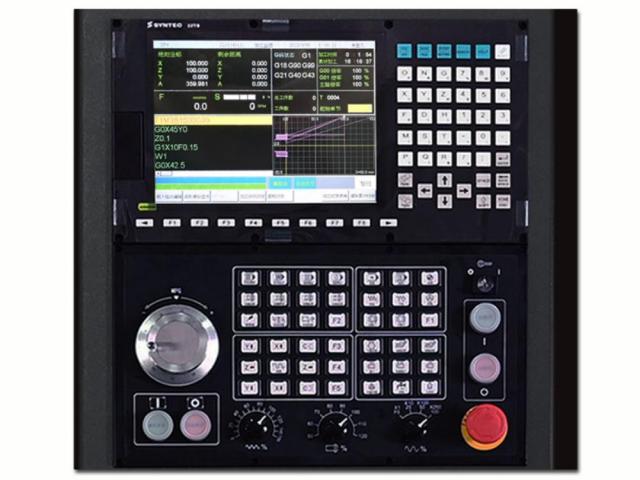

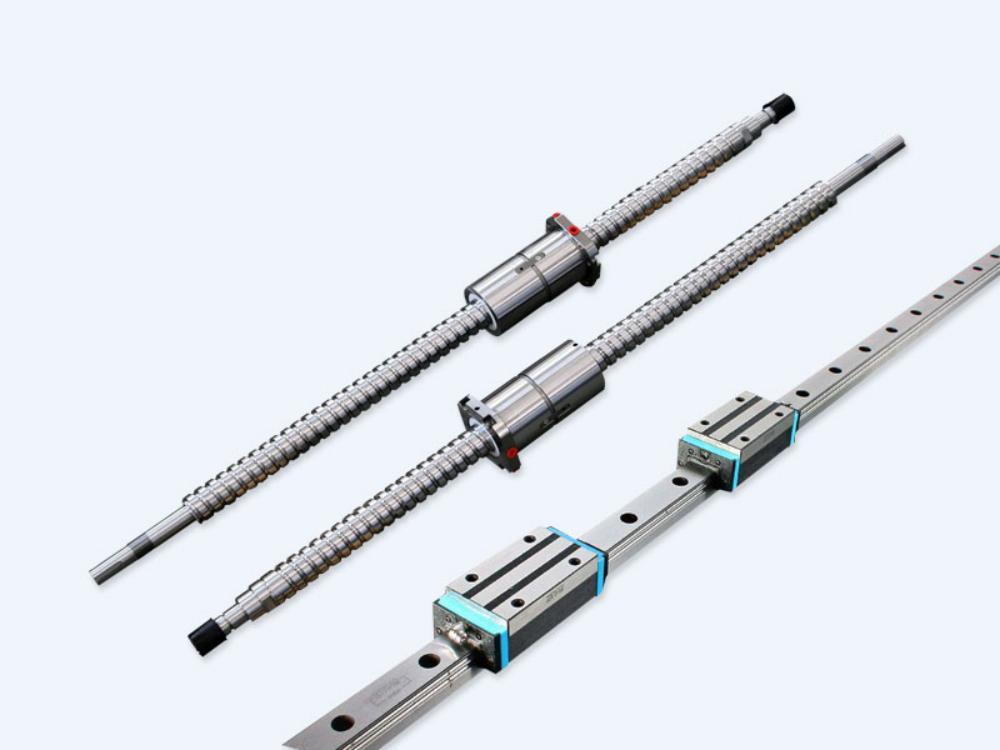

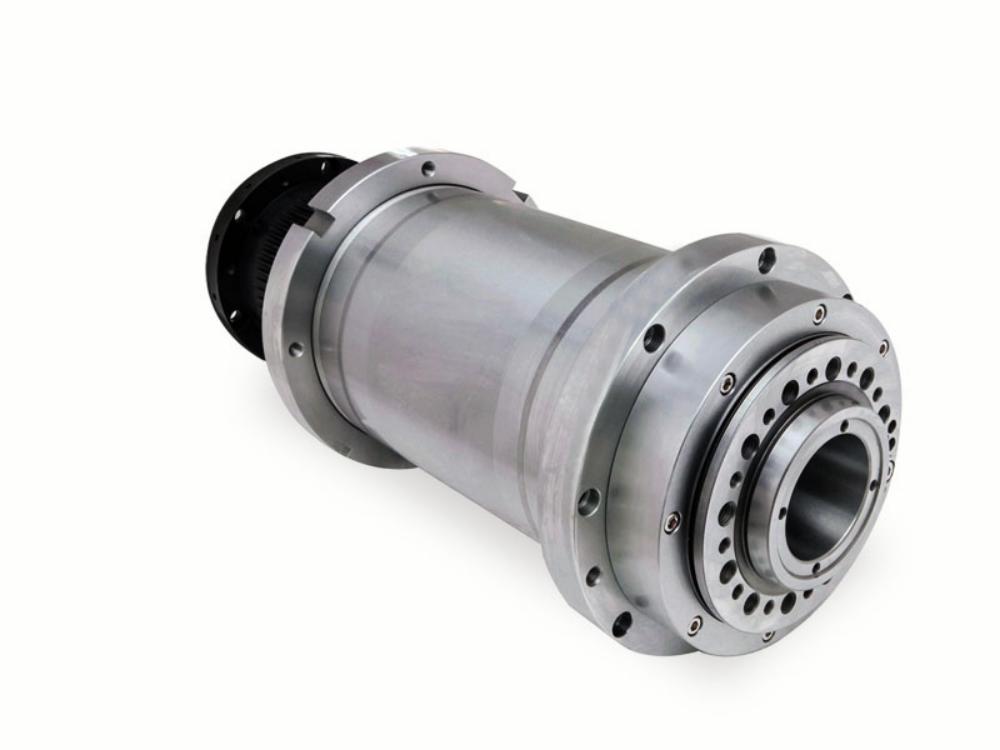

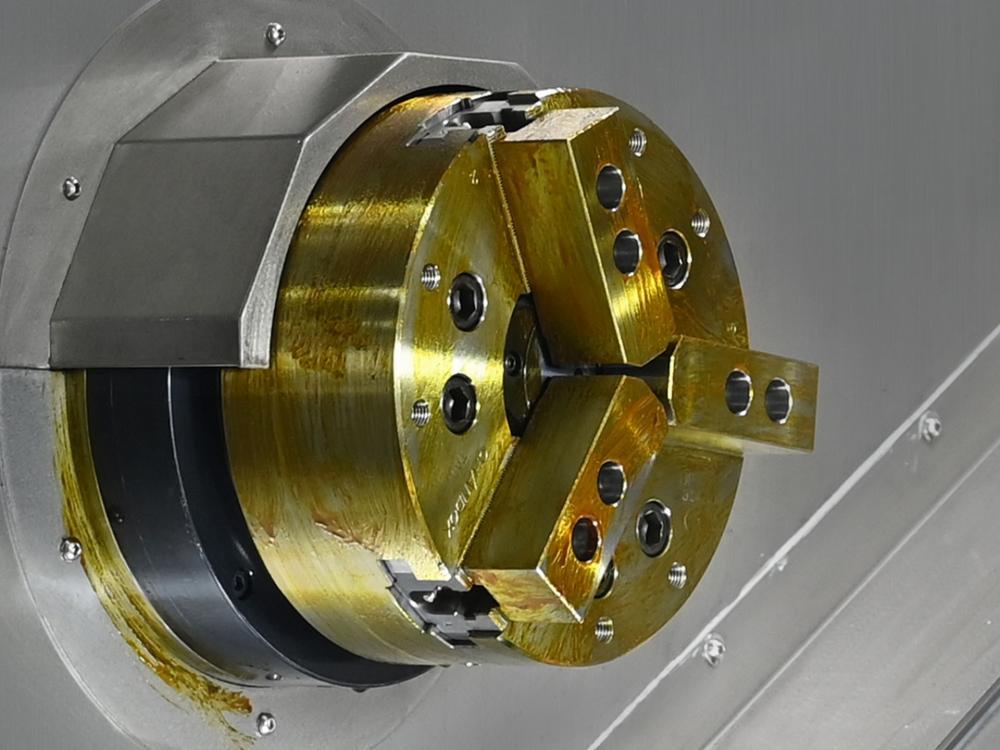

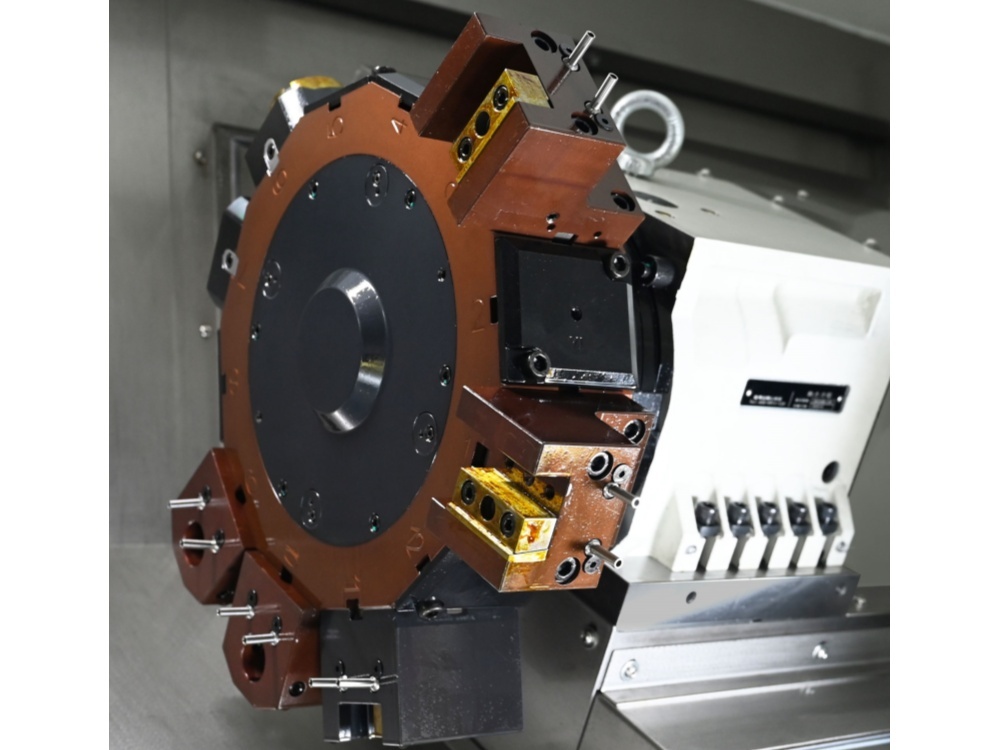

| Parameter | Optional Equipment | |||
| Item | Name | Value | Item | Options |
| Capacity | Swing Over Bed(mm) | Φ 660 | CNC SYSTEM | FANUC |
| Max. Turning Diameter (Chuck-type parts)(mm) | Φ 500 | SYNTEC | ||
| Max. Turning Length(mm) | 460 | GSK | ||
| Max. Bar Capacity through Spindle Bore (mm) | Φ 91 | Spindle | VOLIS | |
| Distance Between Centers (mm) | 800 | HAINA | ||
| Travel | X-Axis Travel (mm) | 325 | DENEARN | |
| Z-Axis Travel (mm) | 650 | Roller Linear Guideway | PMI | |
| Spindle | Spindle Nose Type | A2-8 | HIWIN | |
| Spindle Bore Diameter(mm) | Φ 105 | THK | ||
| Max. Spindle Speed(rpm) | 2500 | Ball Screw | PMI | |
| Spindle Motor Power(kW) | 22 | HIWIN | ||
| Chuck & Rotary Cylinder Specification | 12" | THK | ||
| Accuracy | X, Z Axis Positioning(mm) | ±0.004 | Auxiliary Extension | Truss Manipulator |
| X, Z Axis Positioning Repeatability(mm) | ±0.002 | |||
| Powered Turret | Number of Turret Stations | 12 stations | Articulated Robot | |
| Tool Shank Size | □25*25 | |||
| Boring Bar Size(mm) | Φ 40 | Tool Setter | ||
| Driven Tool Holder Size | BMT65/ER40 | Parts Catcher | ||
| Size/Weight | Machine Dimensions (L×W×H)(mm) | 3130*2090*1780 | Automatic Chip Conveyor | |
| Net Weight(kg) | 6000 | Automatic Feeding Machine | ||
