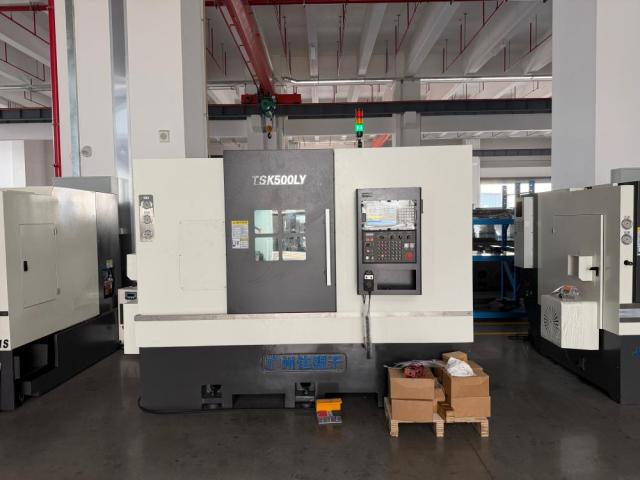

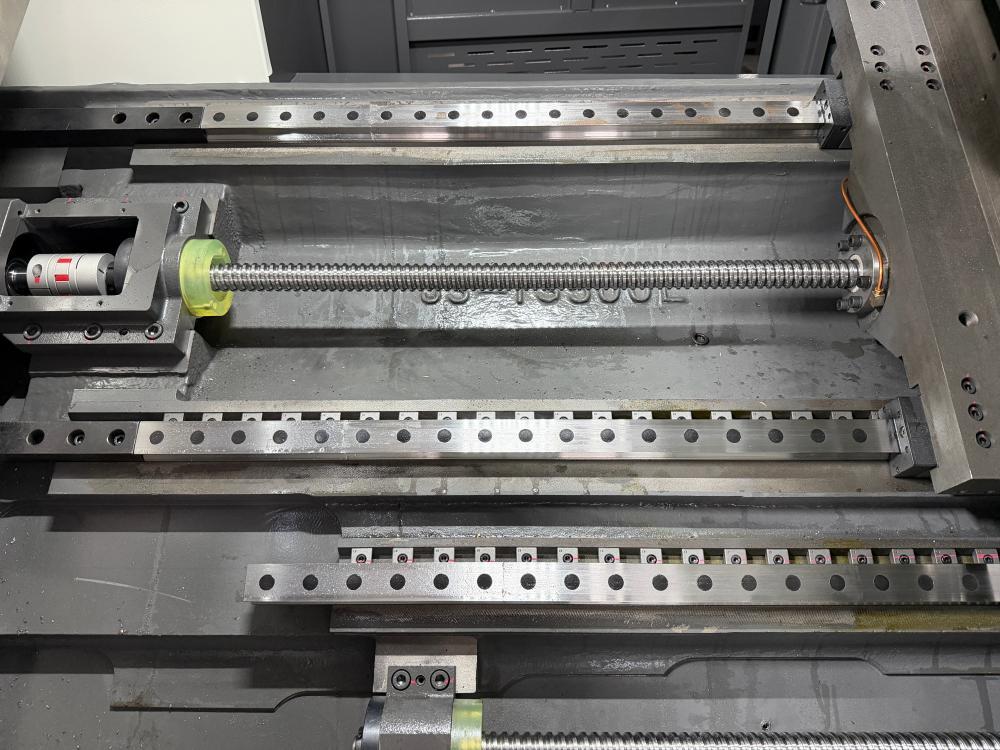

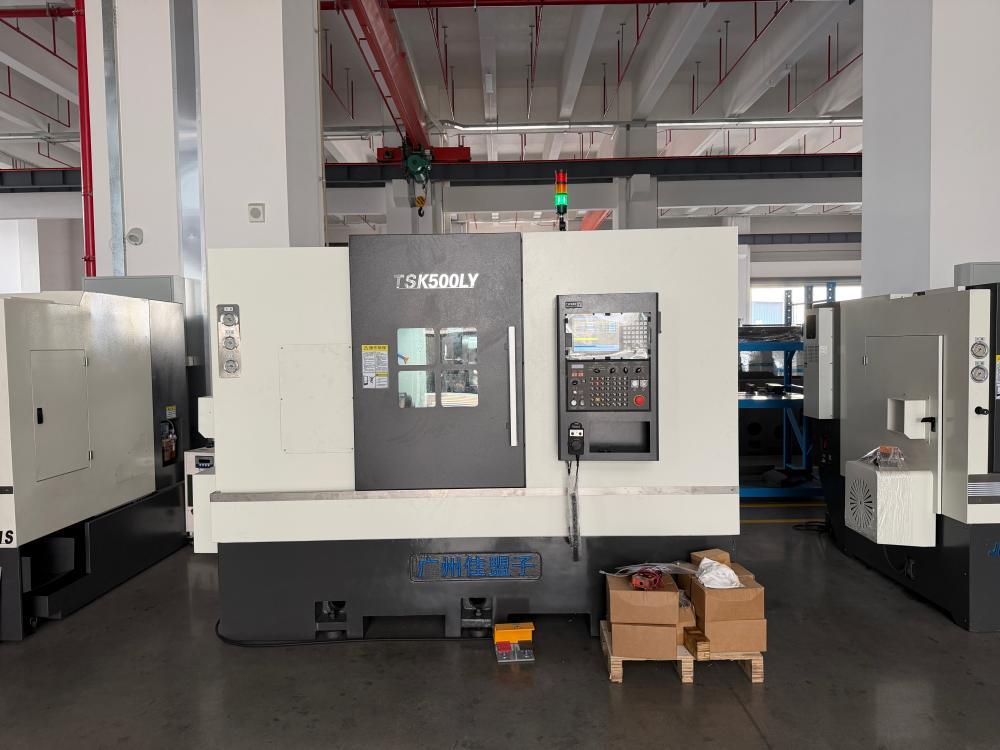

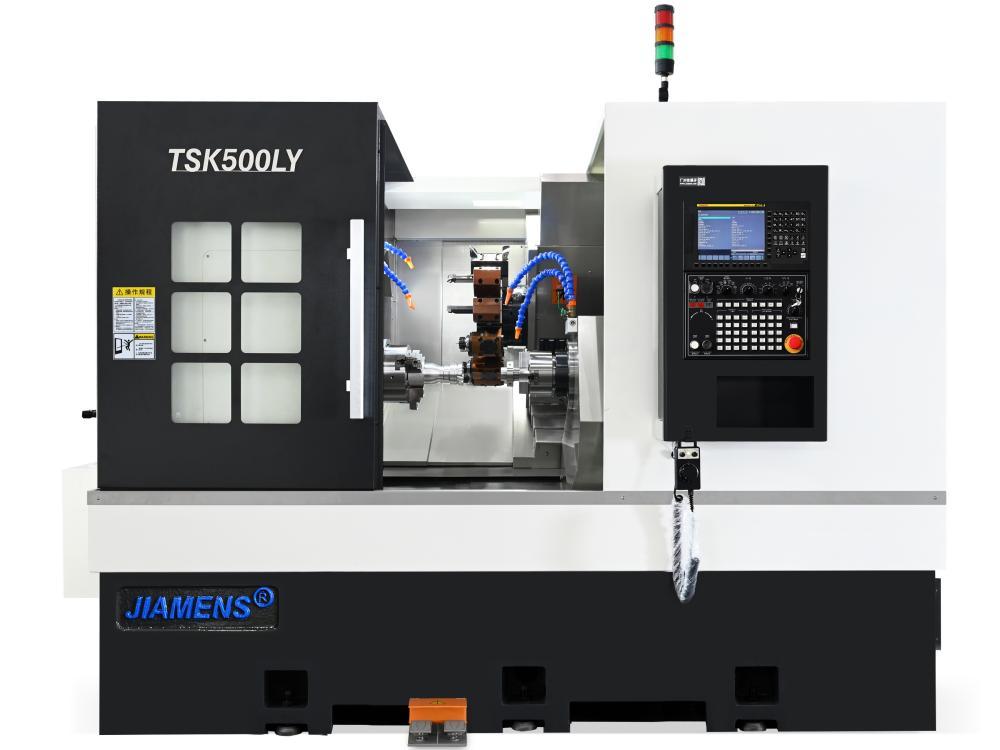

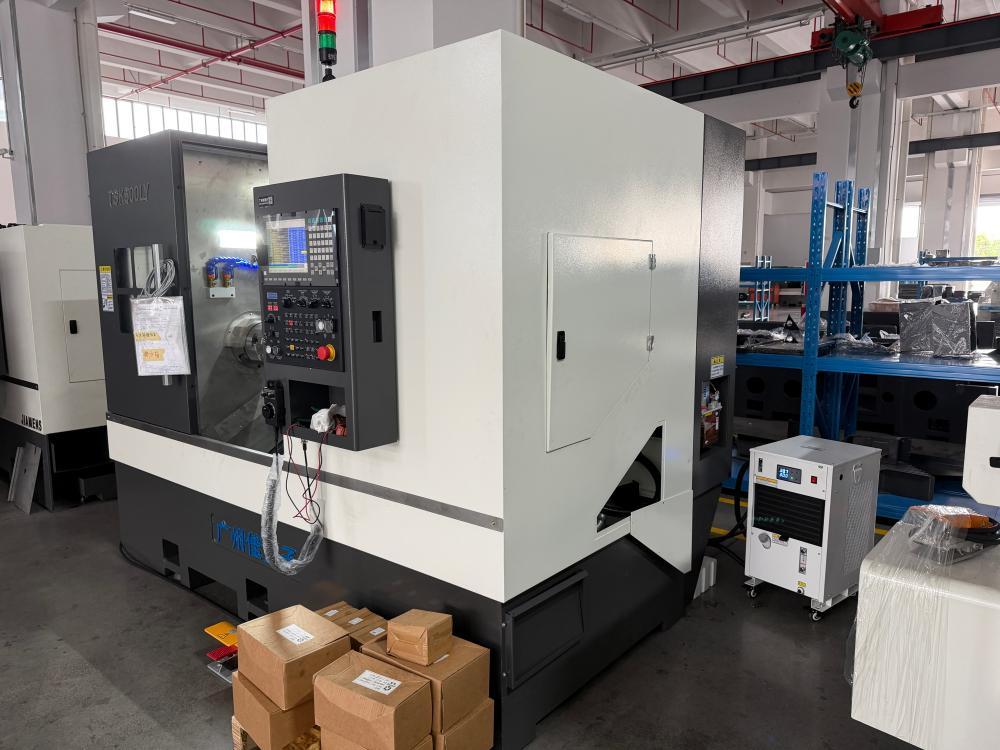

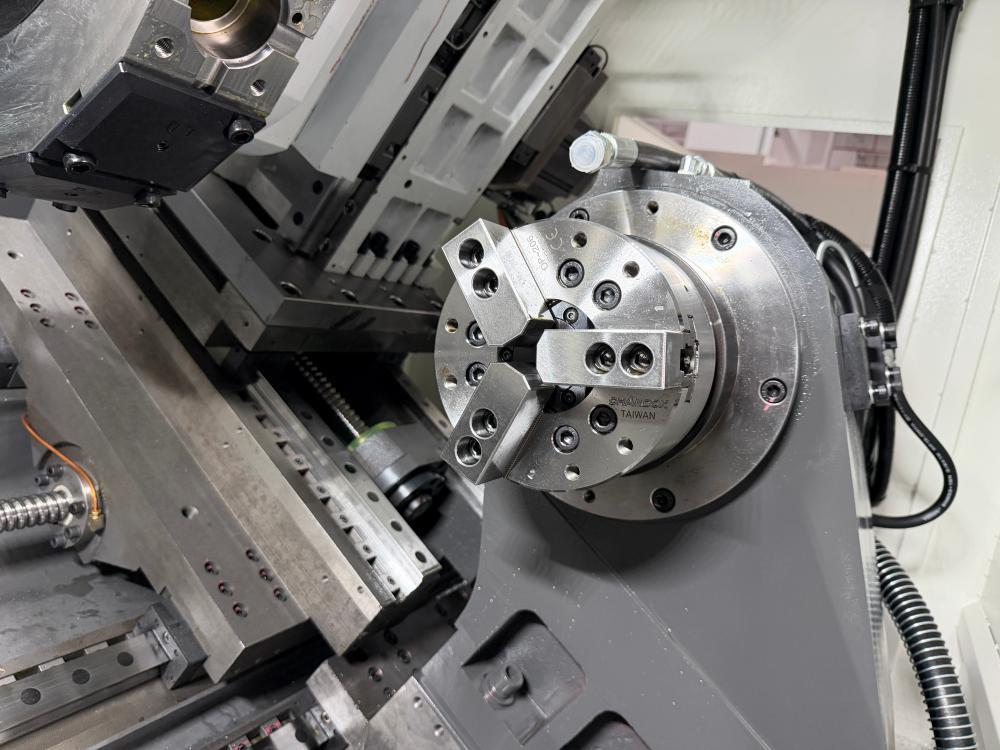

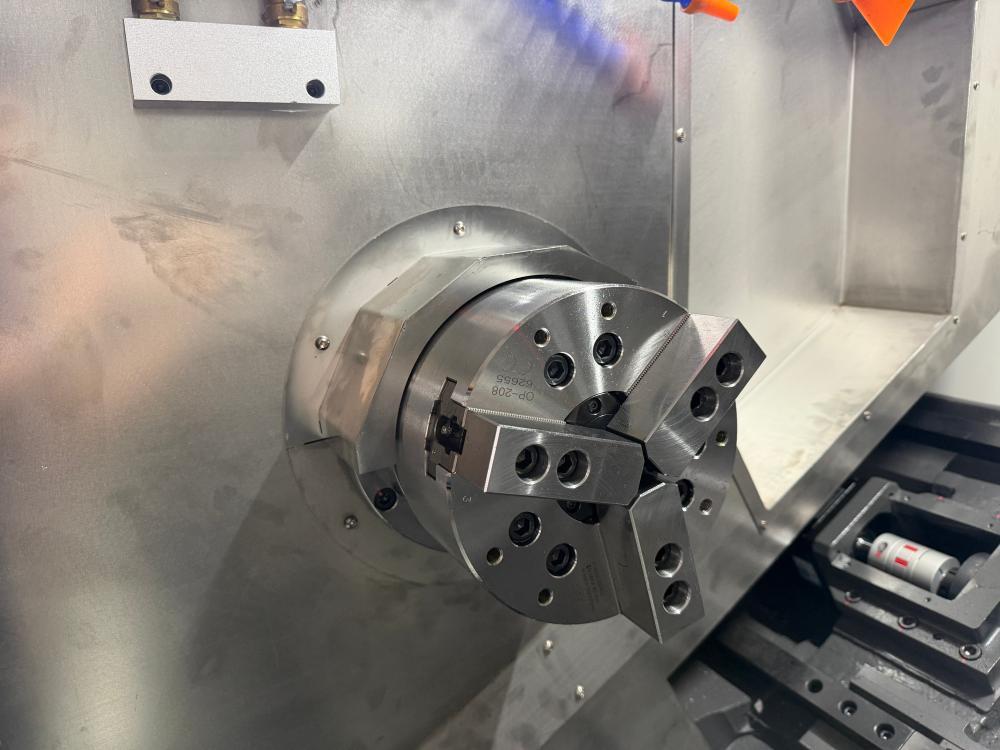

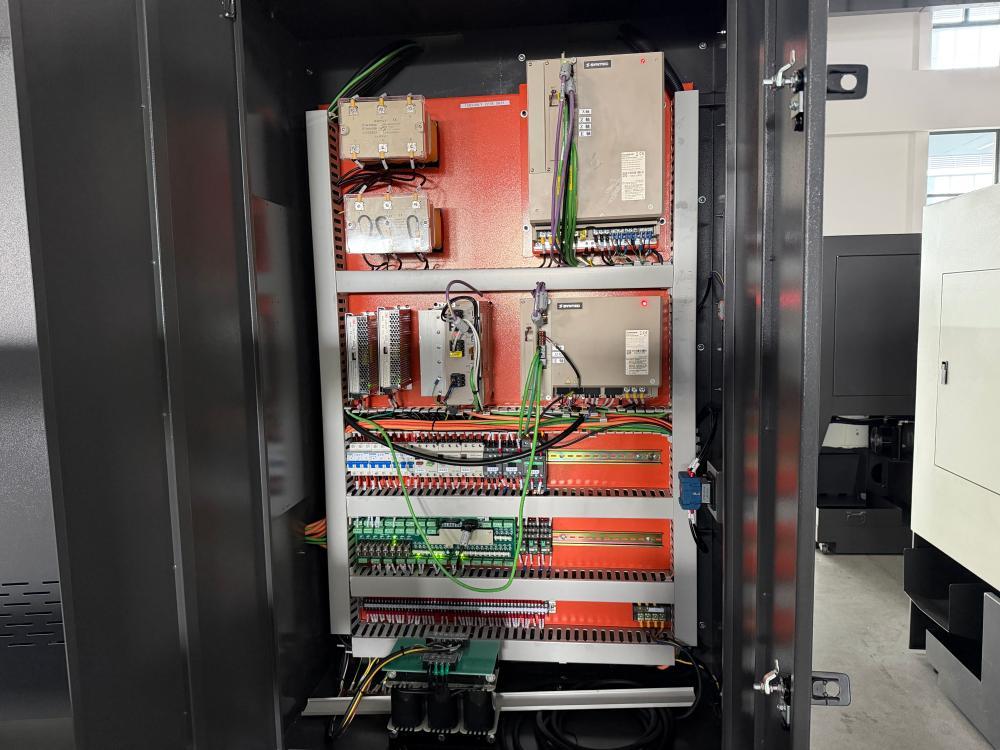

The TSK500LY is a Horizontal CNC Turning Center (with Y-axis) developed by JIAMENS based on standardized and modular design concepts. It adopts a 30° slant-bed structure together with a vertical Y-axis power mechanism to realize compound machining for turning, milling and cutting operations. The machine is equipped with high-torque dual spindles (inclined rail sub-spindle), enabling workpiece transfer between different spindles to avoid cumulative errors caused by multiple clamping, and provides comprehensive high-precision turning functions and automatic control capabilities. Roller linear guideways are equipped, with six sliding blocks on the Z-axis roller linear guide, which effectively reduces vibration and structural deformation, improving the machine’s rigidity and machining accuracy. Beyond the standard functions of a CNC lathe, the machine can perform face milling, drilling, tapping, straight-groove milling, helical-groove milling and gear milling. Featuring integrated turning, milling and boring capabilities, it delivers the process philosophy of complete-part-machining in a single clamping.

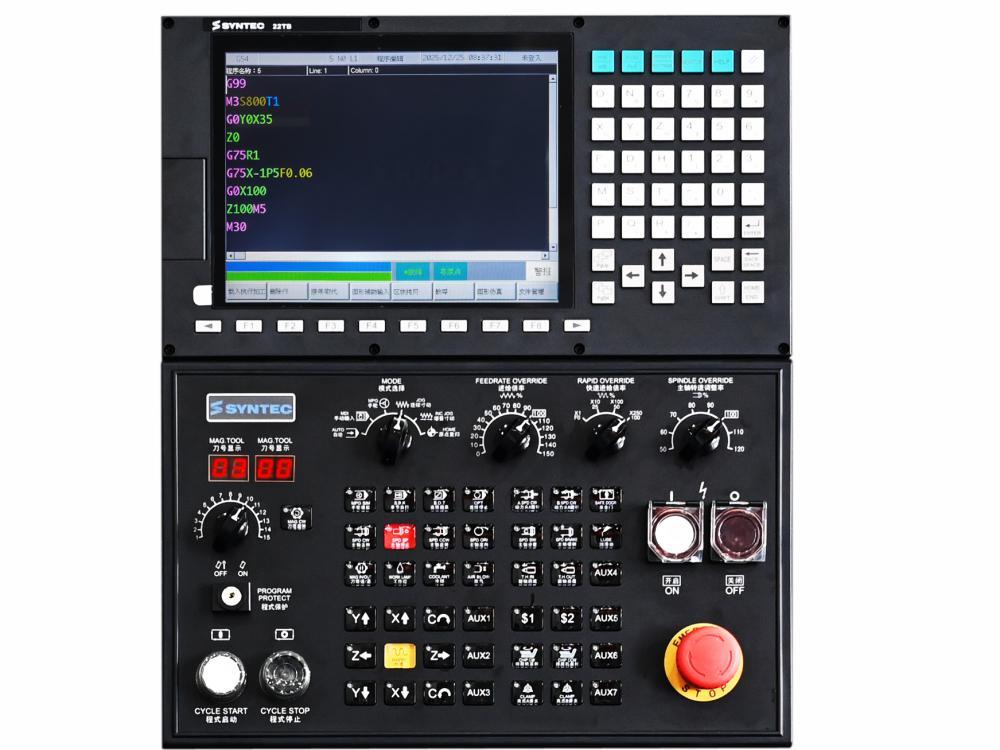

| Parameter | Optional Equipment | |||
| Item | Name | Value | Item | Options |
| Capacity | Swing Over Bed(mm) | Φ 700 | CNC SYSTEM | FANUC |
| Max. Turning Diameter (Chuck-type parts)(mm) | Φ 250 | SYNTEC | ||
| Max. Turning Length(mm) | 450 | GSK | ||
| Max. Bar Capacity through Spindle Bore(mm) | Φ 52 | Spindle | VOLIS | |
| Distance between chucks(min./max.) (mm) | 90/640 | HAINA | ||
| Travel | X-Axis Travel(mm) | 220 | DENEARN | |
| Z-Axis Travel: Z1/Z2(mm) | 650/600 | Roller Linear Guideway |
PMI | |
| Y-Axis Travel (mm) | ± 50 | HIWIN | ||
| Spindle | Spindle Nose Type | A2-6 | THK | |
| Spindle Bore Diameter(mm) | Φ 66 | Ball Screw |
PMI | |
| Max. Spindle Speed(rpm) | 4500 | HIWIN | ||
| Spindle Motor Power(kW) | 11 | THK | ||
| Chuck & Rotary Cylinder Specification | 8" | Auxiliary Extension |
Truss Manipulator |
|
| Accuracy | X, Z Axis Positioning(mm) | ± 0.005 | ||
| X, Z Axis Positioning Repeatability(mm) | ± 0.003 | Articulated Robot | ||

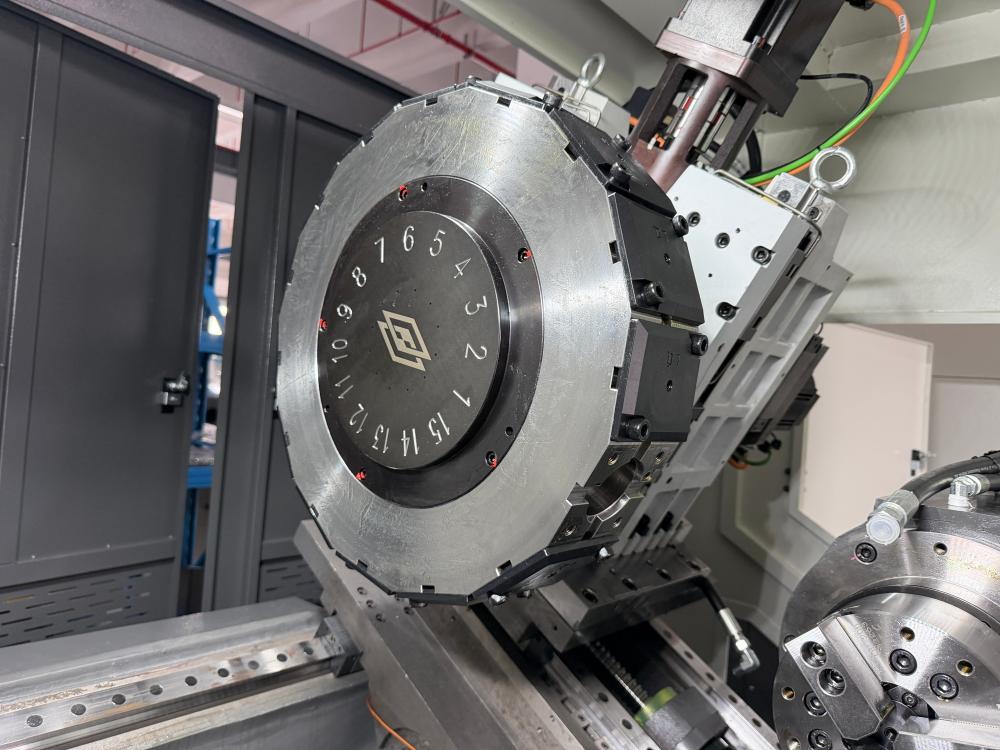

| Powered Turret |
Number of Turret Stations | 15 stations | Tool Setter | |
| Tool Shank Size | □ 25*25 | Parts Catcher |
||
| Boring Bar Size(mm) | Φ 32 | Automatic Chip Conveyor |
||
| Driven Tool Holder Size | BMT55/ER32 | |||
| Size/Weight | Machine Dimensions (L×W×H)(mm) | 2860*1830*1940 | Automatic Feeding Machine |
|
| Net Weight(kg) | 5500 | |||
