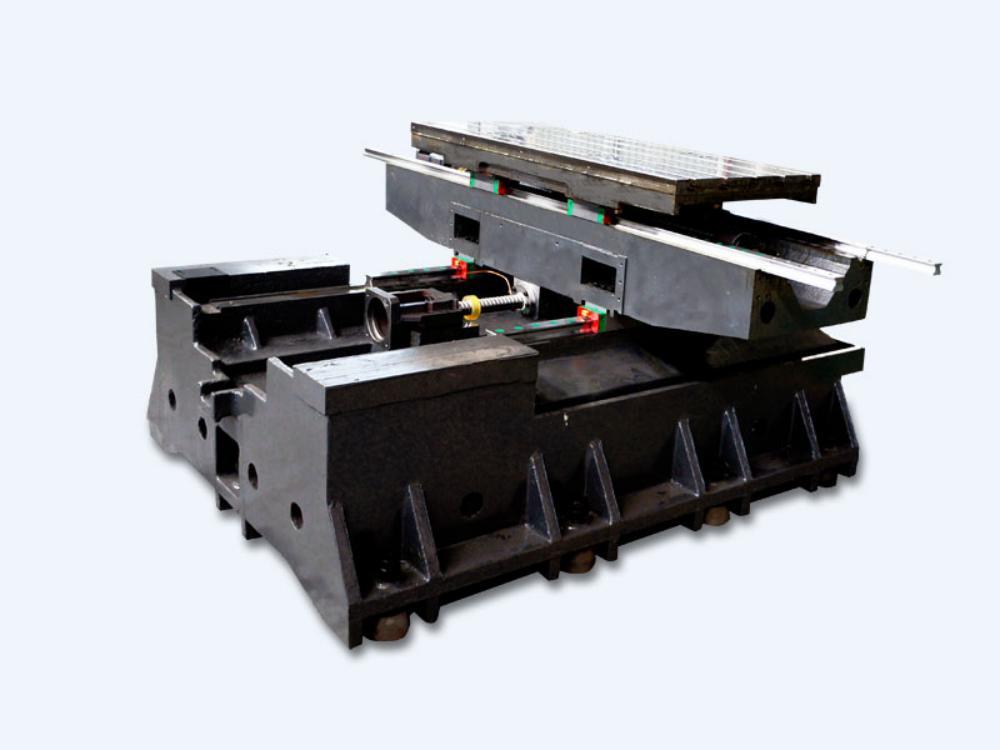

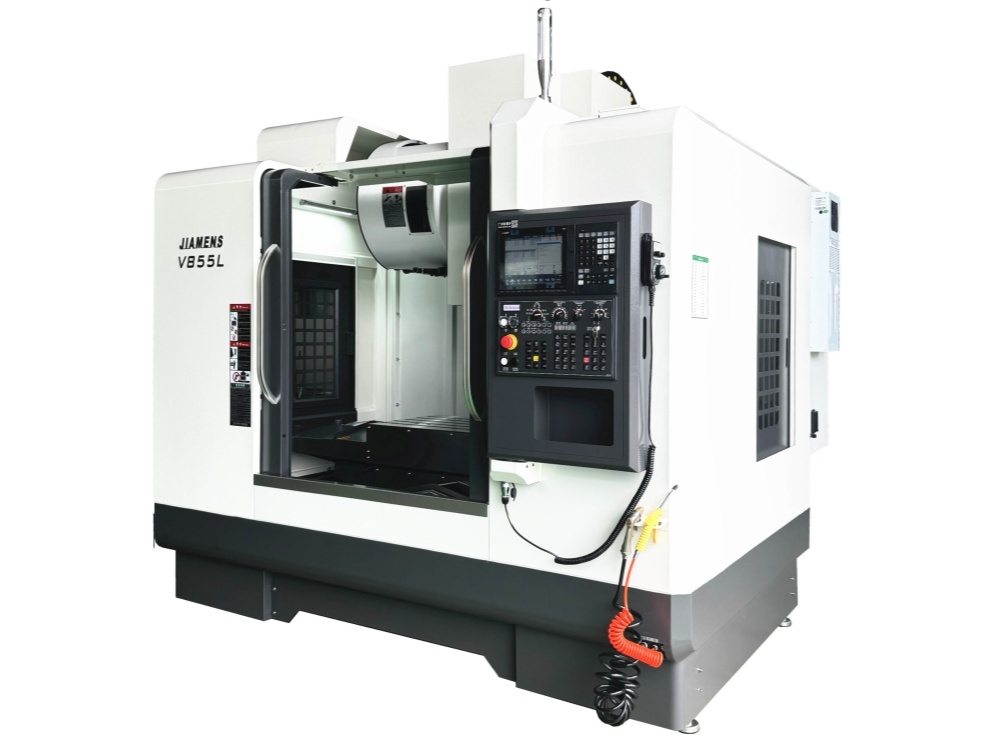

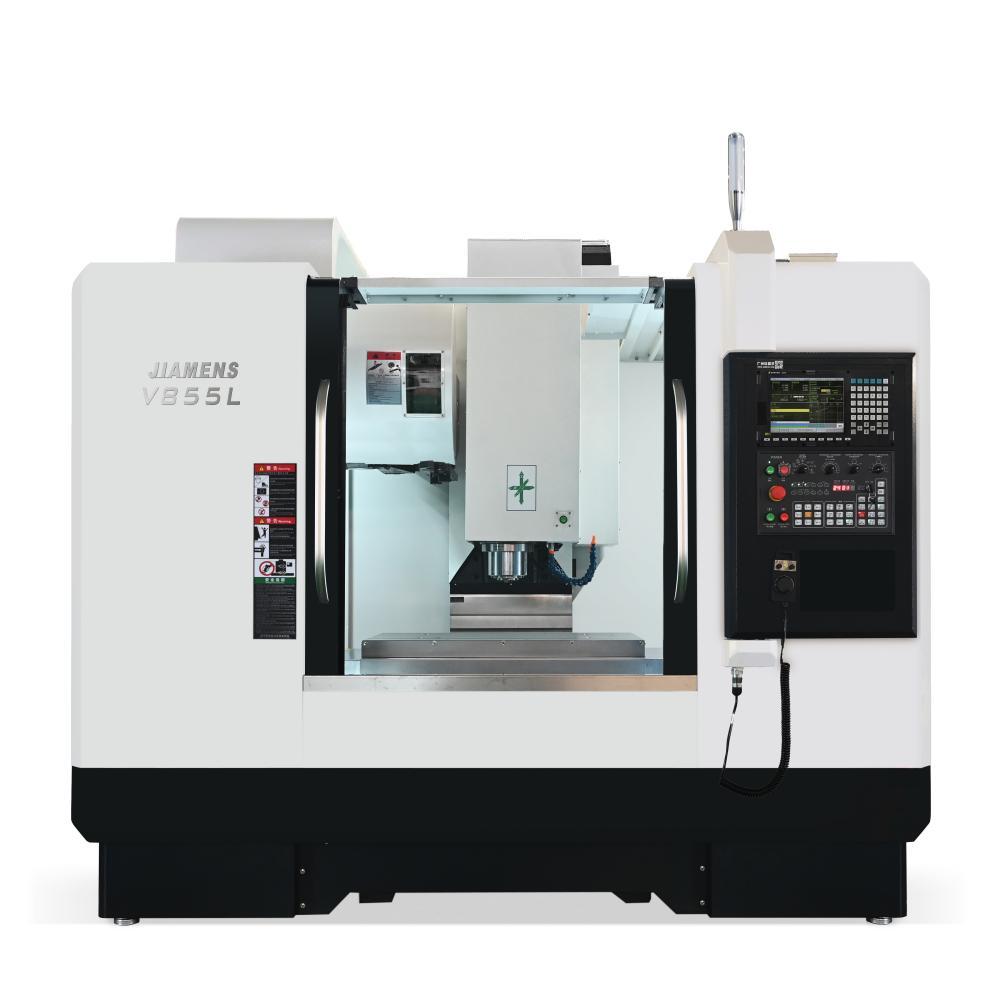

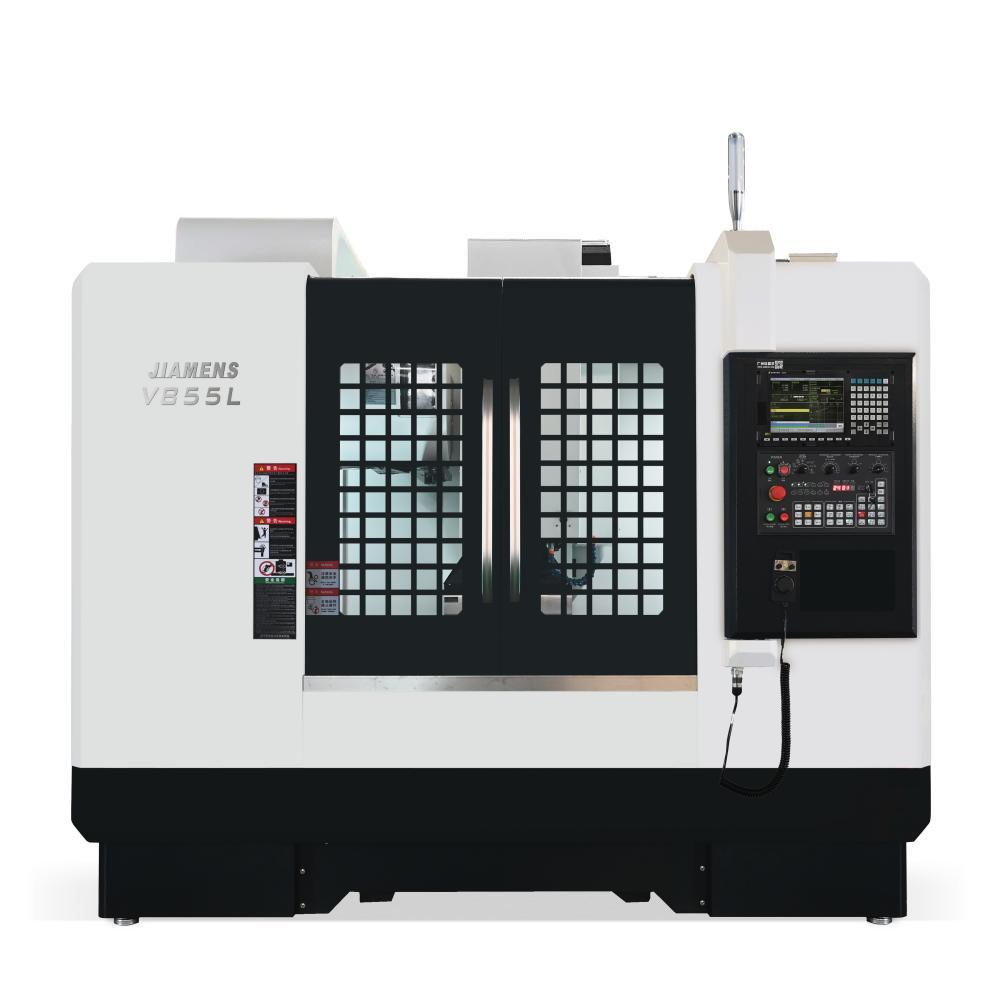

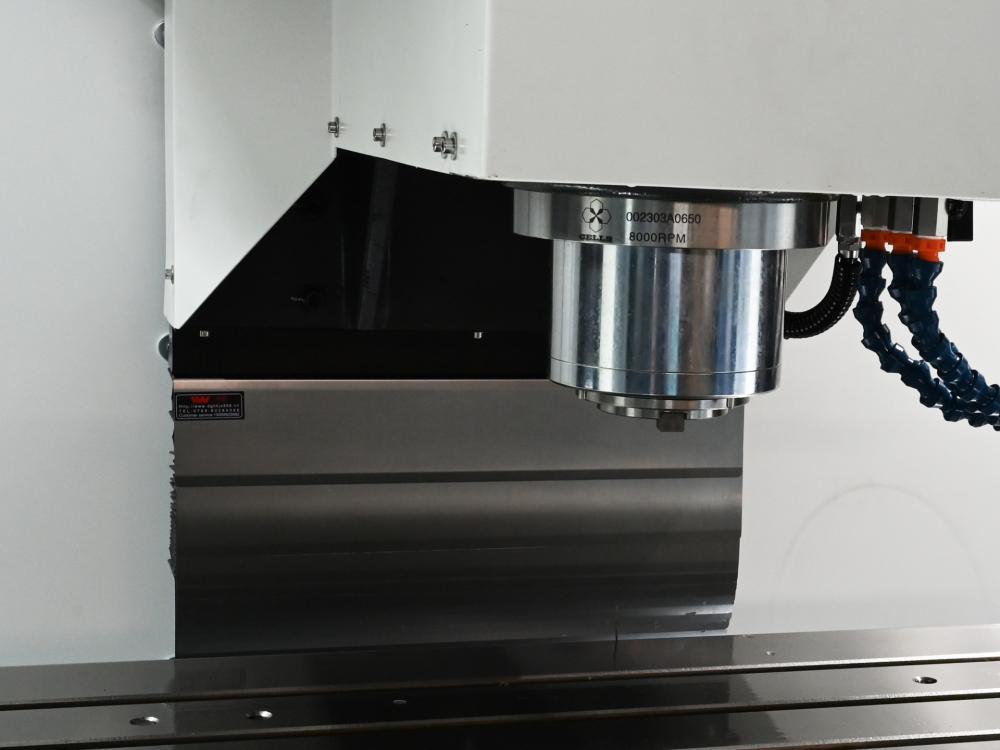

The V855L is a Vertical Machining Center developed by JIAMENS. While inheriting the advantages of traditional vertical linear‑guide machine tools — high base frame rigidity, symmetrical structure and strong stability — it introduces internationally advanced dynamic rigidity design concepts and adopts an optimized design for its moving components.
The machine delivers high machining efficiency and excellent rapid response characteristics, and meets the processing demands of various mechanical processing fields such as mold manufacturing, military industry and hardware.
| Parameter | Optional Equipment | |||
|---|---|---|---|---|
| Item | Name | Value | Item | Options |

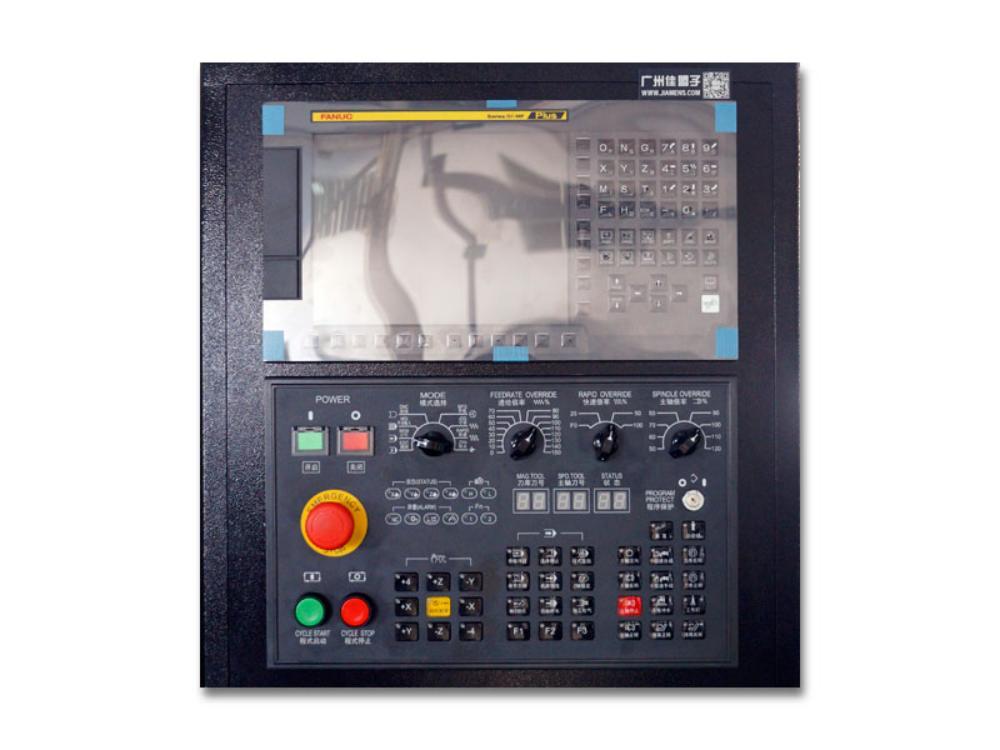

| Travel | X-Axis Travel(mm) | 800 | CNC SYSTEM | FANUC |
| Y-Axis Travel(mm) | 550 | SYNTEC | ||
| Z-Axis Travel(mm) | 550 | KND | ||
| Distance from spindle center to column guideway（mm) | 590 | Spindle | VOLIS | |
| Distance from spindle nose to worktable(mm) | 120-670 | HAINA | ||
| Worktable |
Dimensions(mm) | 1000*550 | DENEARN | |
| Maximum load capacity(kg) |
550 |

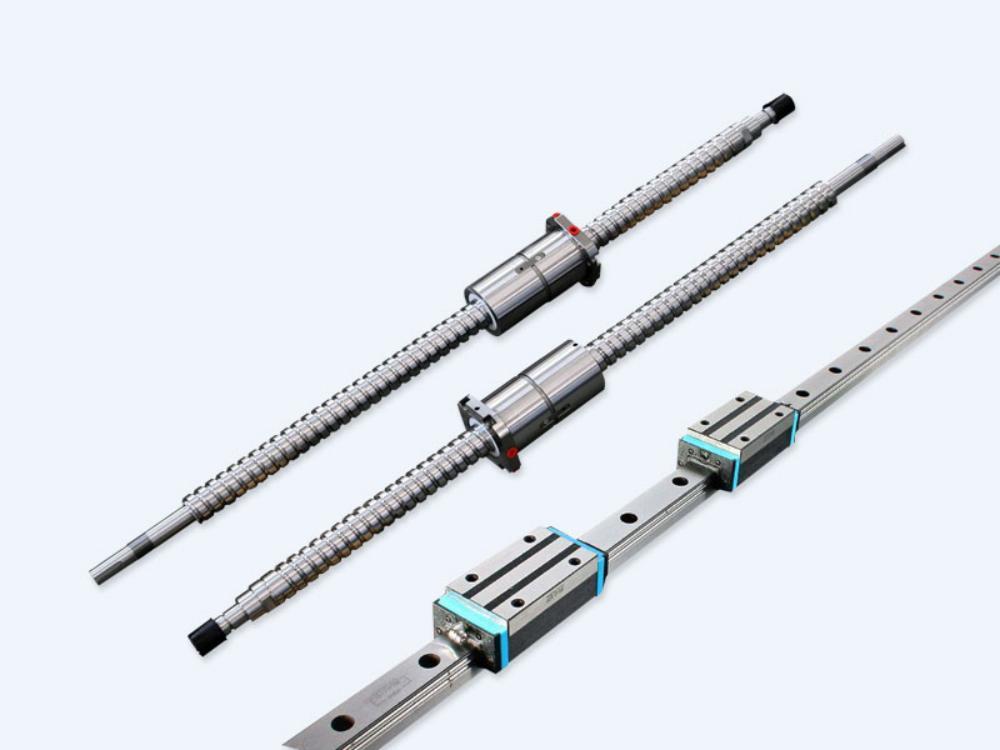

Roller Linear Guideway | FZS | |

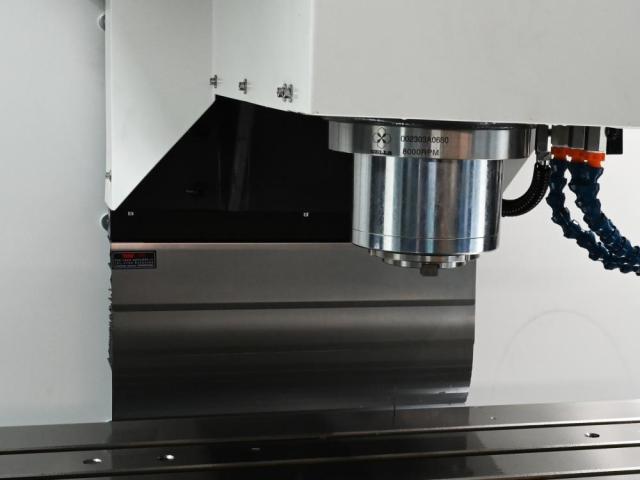

| Spindle |
Dimensions | BT40/Φ150 | Ball Screw | PMI |
| Speed(rpm) | 8000 | HIWIN | ||
| Motor Power |
Spindle motor(kW) | 11 | Auxiliary Extension |
Truss Manipulator |
| X-Axis motor(kW) | 18.6 | Articulated Robot | ||
| Y-Axis motor(kW) | 18.6 | Tool Setter | ||
| Z-Axis motor(kW) | 23 | |||

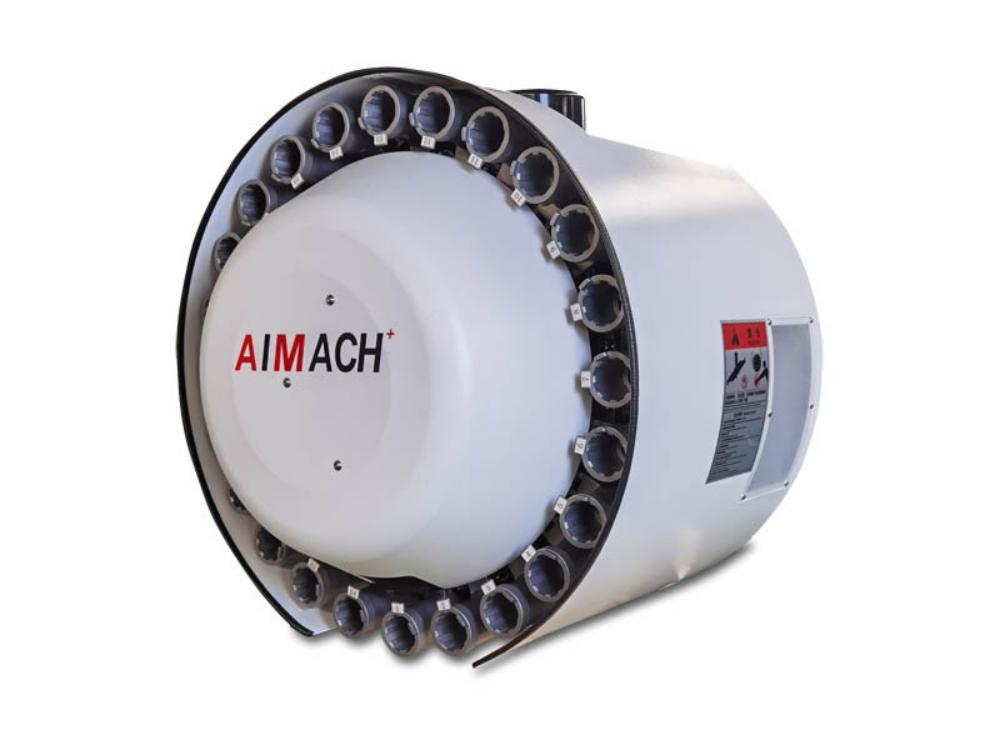

| Automatic Tool Changer | Dimensions | Disc-type tool magazine/24 tools | Automatic Chip Conveyor | |
| Accuracy |
Positioning(mm) | ±0.005 | Touch Probe | |
| Positioning Repeatability(mm) | ±0.003 | 4-Axis CNC rotary table | ||
| Size/Weight | Machine Dimensions (L×W×H)(mm) | 2700*2500*2700 | 5-Axis CNC trunnion table | |
| Net Weight(kg) | 5300 | |||
