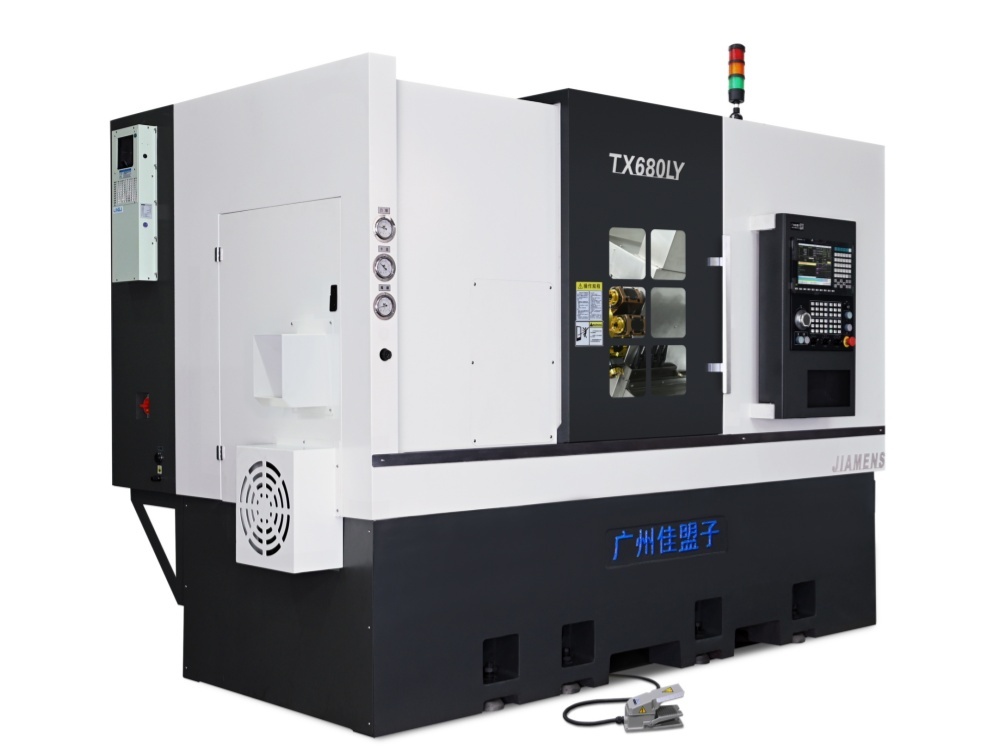

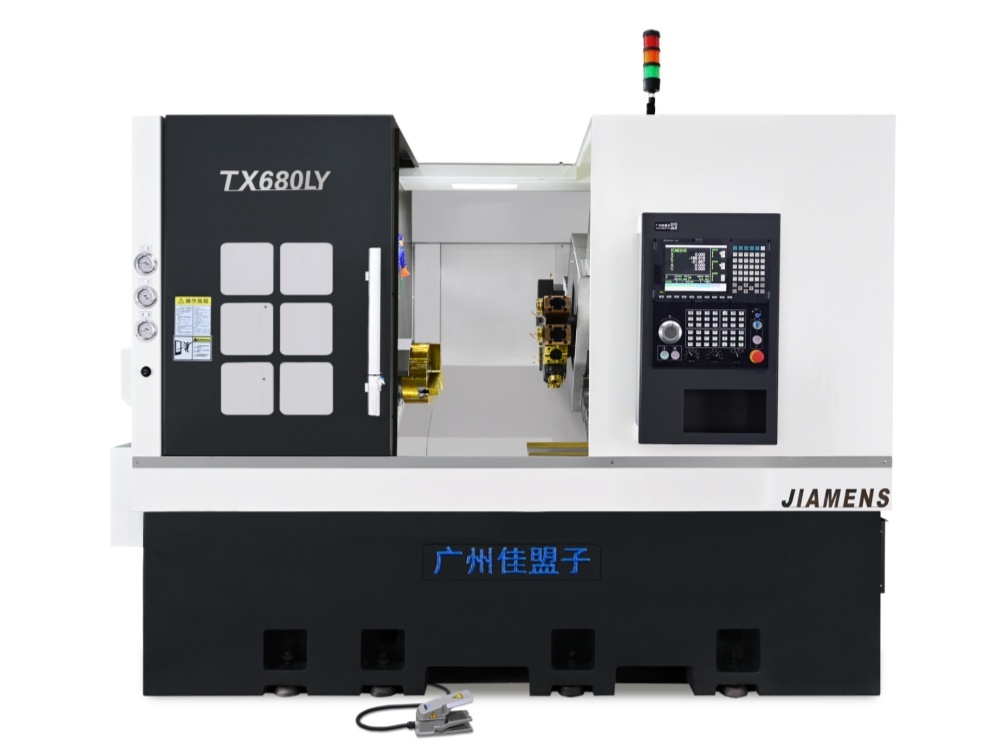

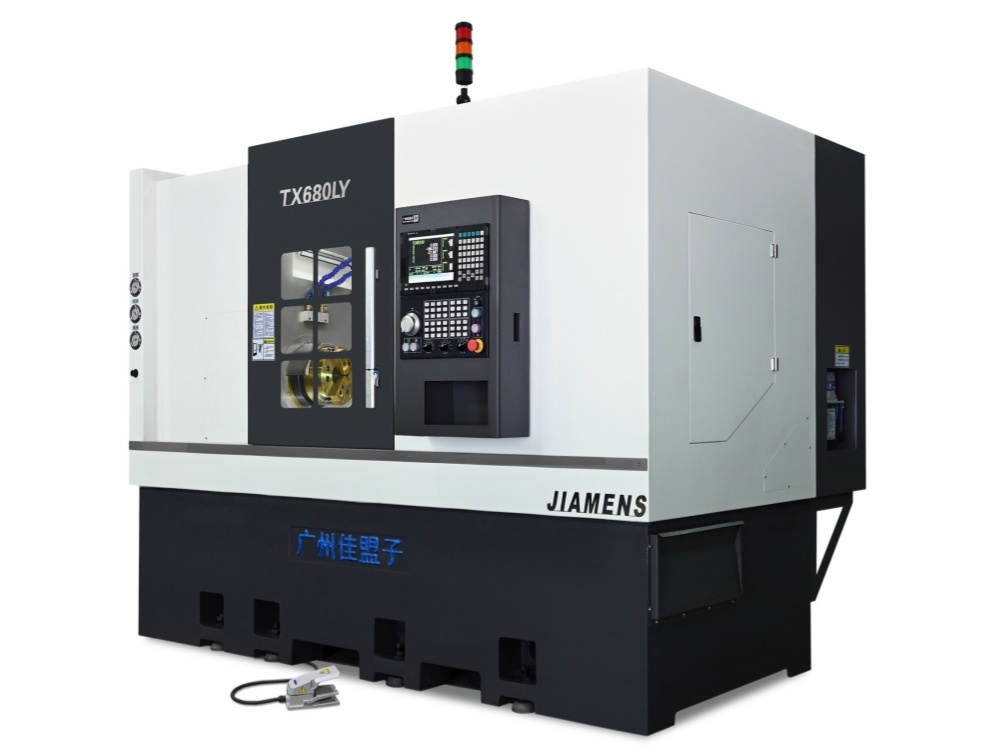

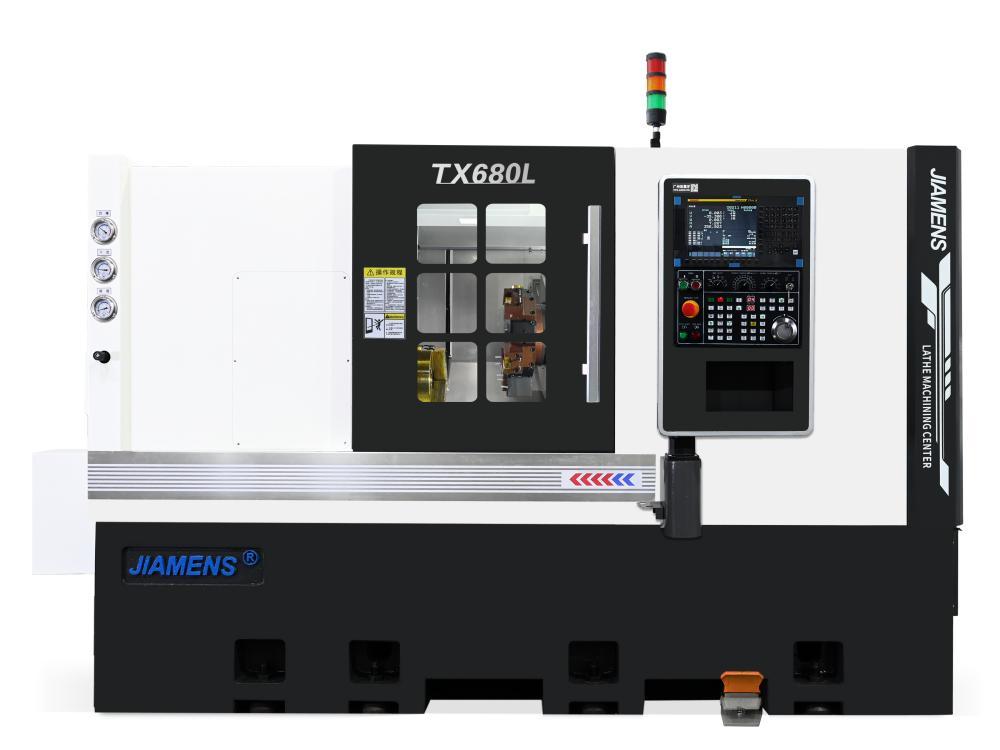

The TX680L is a multi-function power turret CNC turning-milling center (without Y-axis) developed by JIAMENS based on standardized and modular design concepts.

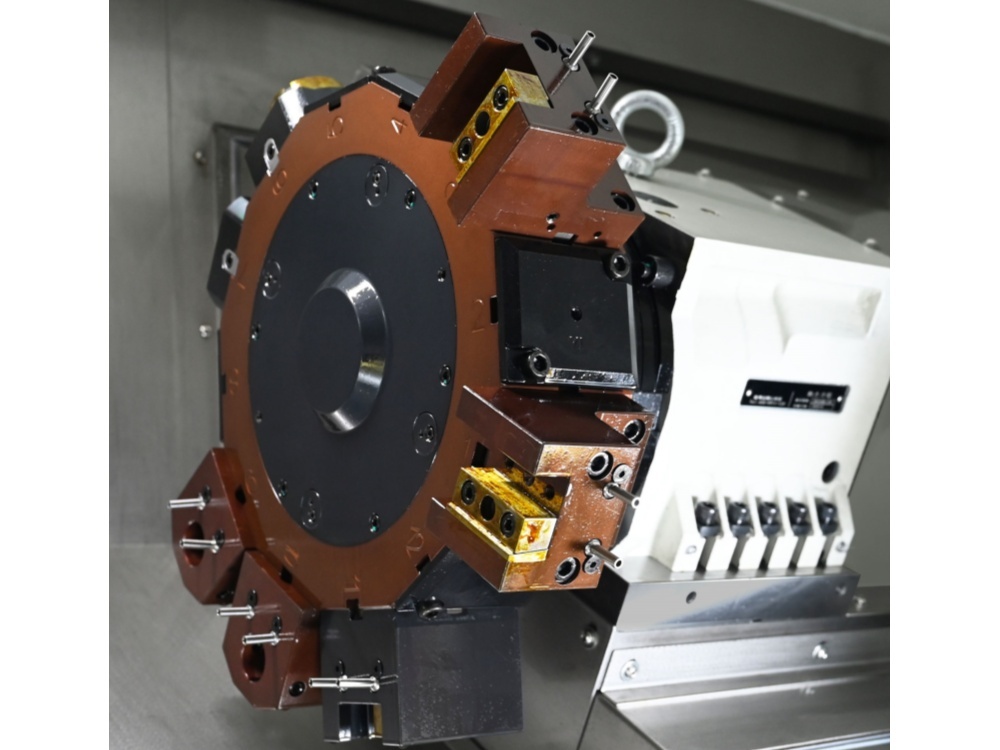

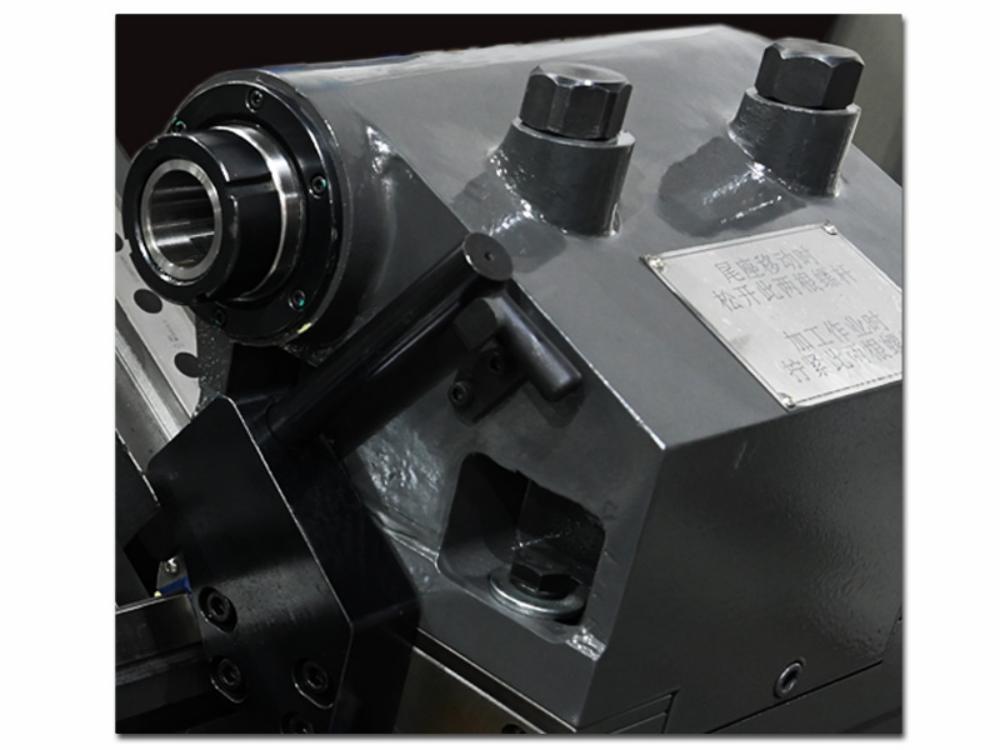

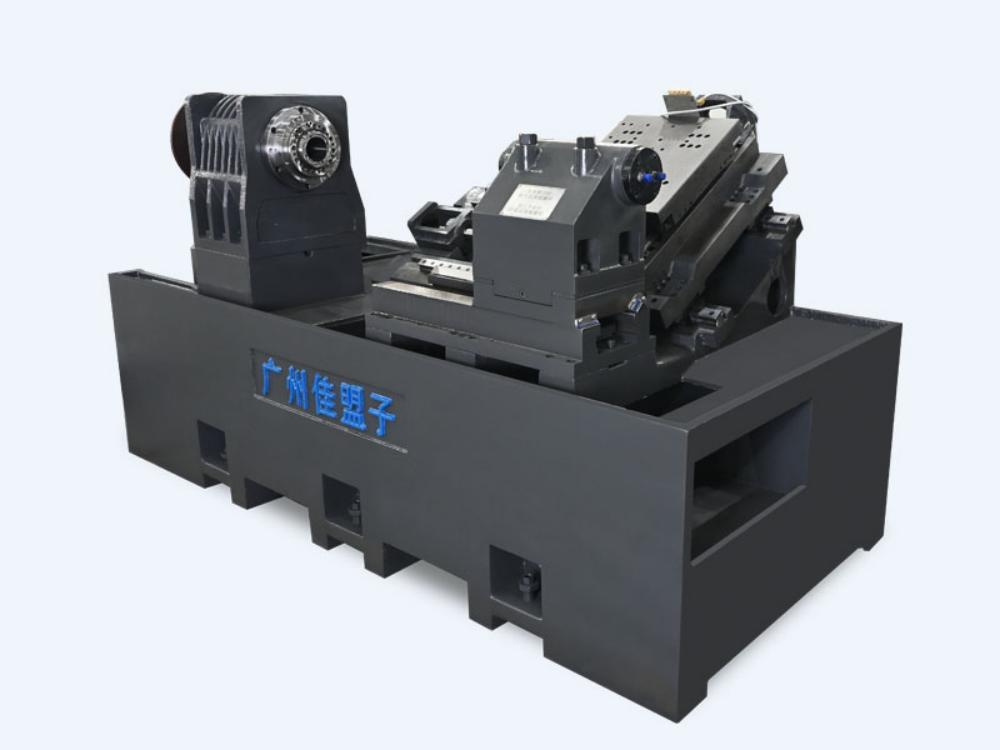

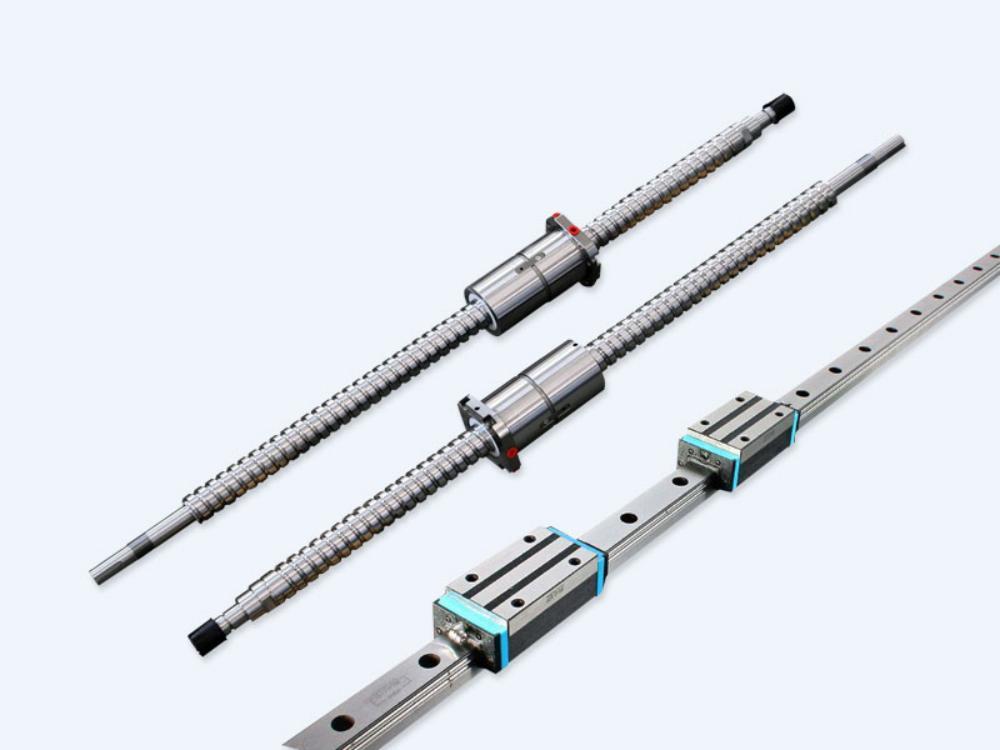

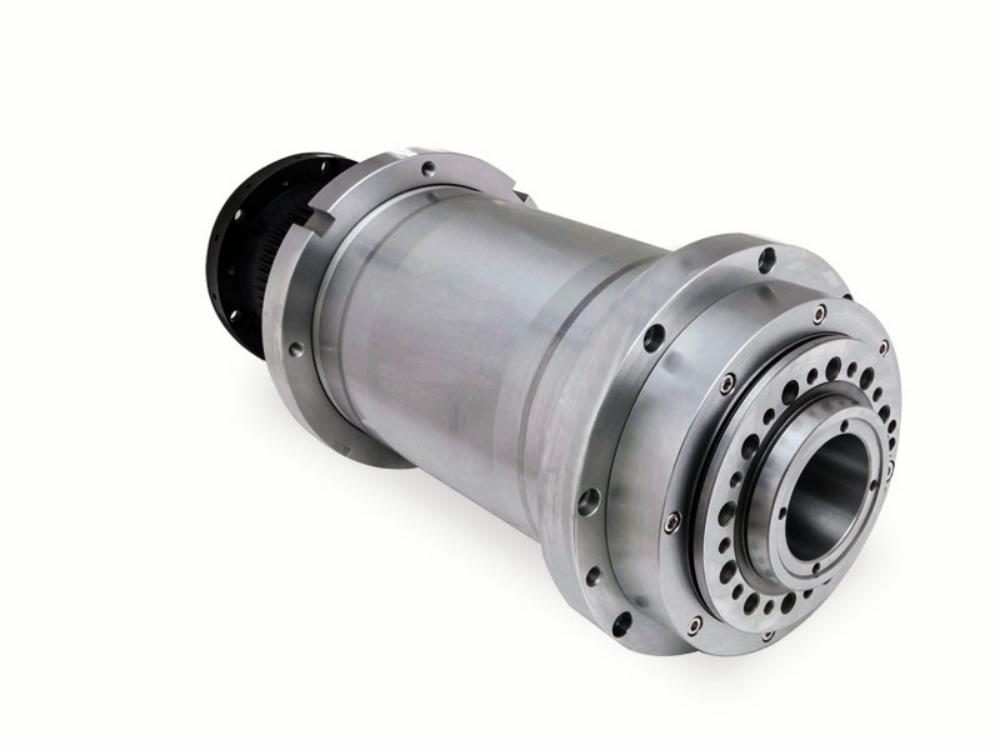

It adopts a 30° slant-bed structure together with a high-rigidity power turret to realize compound machining for turning, milling and cutting operations. The machine is equipped with a high-power, high-torque spindle, and the spindle motor is flange-mounted to enhance rigidity, delivering a comprehensive range of high-precision turning functions and automatic control capabilities. Roller linear guideways are adopted, with six sliders configured on the Z-axis roller linear guideway. The tailstock with triangular guideway for traversing movement effectively reduces vibration and structural deformation, improving the machine’s rigidity and machining accuracy.
Beyond the standard functions of a CNC lathe, the machine can perform face milling, drilling, tapping, straight-groove milling, helical-groove milling and gear milling. Featuring integrated turning, milling and boring capabilities, it delivers the process philosophy of complete-part-machining in a single clamping.

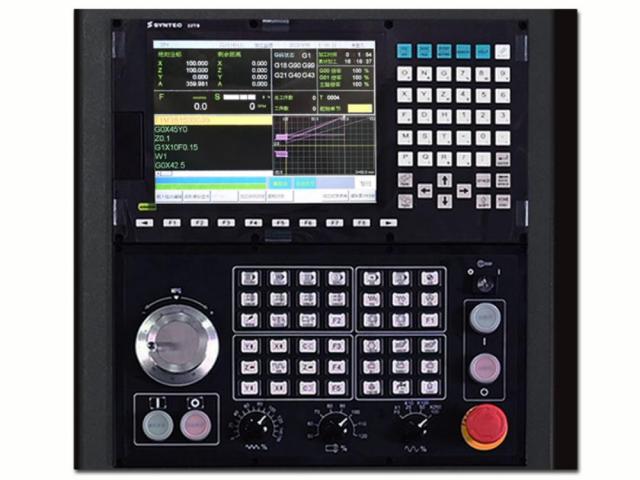

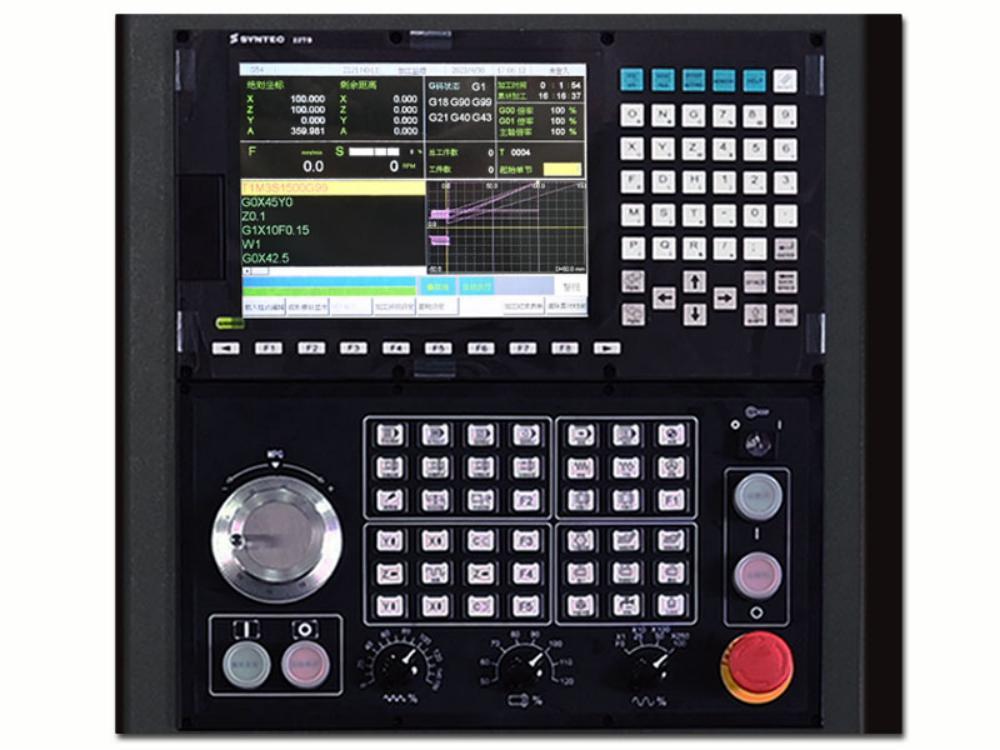

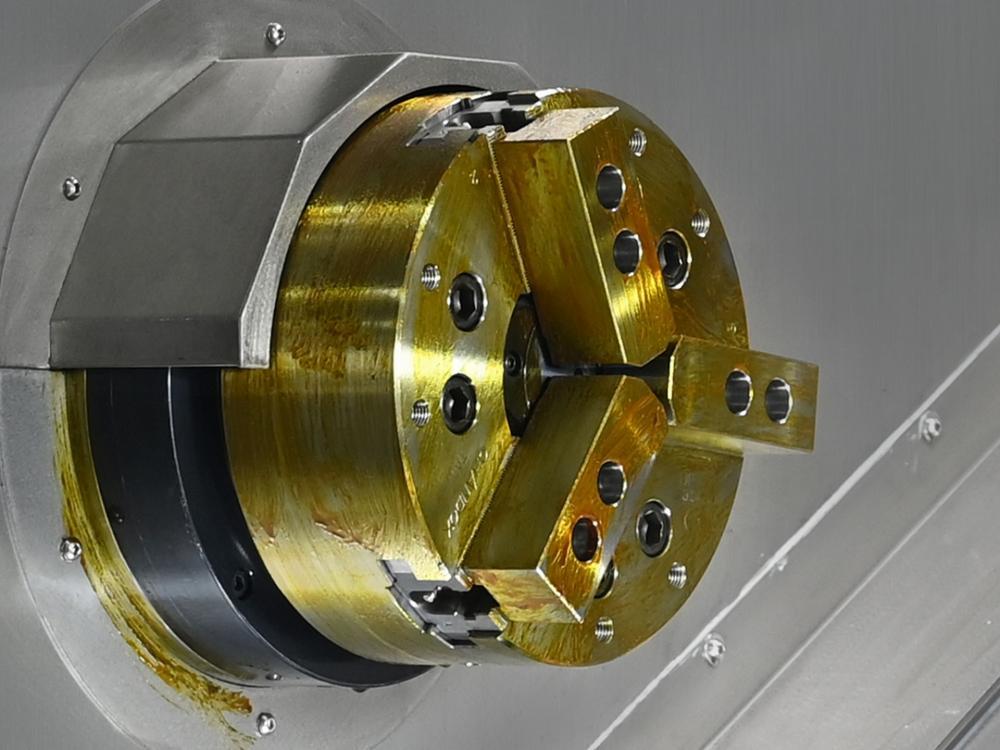

| Parameter | Optional Equipment | |||
|---|---|---|---|---|
| Item | Name | Value | Item | Options |
| Capacity | Swing Over Bed(mm) | Φ660 | CNC SYSTEM | FANUC |
| Max. Turning Diameter (Chuck-type parts)(mm) | Φ500 | SYNTEC | ||
| Max. Turning Length(mm) | 480 | GSK | ||
| Max. Bar Capacity through Spindle Bore (mm) | Φ75 | Spindle |
VOLIS | |
| Distance Between Centers(mm) | 800 | HAINA | ||
| Travel | X-Axis Travel(mm) | 325 | DENEARN | |
| Z-Axis Travel(mm) | 650 | Roller Linear Guideway |
PMI | |
| Spindle | Spindle Nose Type | A2-8 | HIWIN | |
| Spindle Bore Diameter(mm) | Φ86 | THK | ||
| Max. Spindle Speed(rpm) | 6000 | Ball Screw |
PMI | |
| Spindle Motor Power(kW) | 18.5 | HIWIN | ||
| Chuck & Rotary Cylinder Specification | 10" | THK | ||
| Accuracy | X,Z Axis Positioning(mm) | ±0.004 | Auxiliary Extension | Truss Manipulator |
| X,Z Axis Positioning Repeatability(mm) | ±0.002 | |||
| Powered Turret | Number of Turret Stations | 12 stations | Articulated Robot | |
| Tool Shank Size | □25*25 | Tool Setter | ||
| Boring Bar Size(mm) | Φ40 | Parts Catcher | ||
| Driven Tool Holder Size | BMT65/ER40 | Automatic Chip Conveyor |
||
| Size/Weight | Machine Dimensions (L×W×H)(mm) | 3130*2090*1780 | ||
| Net Weight(kg) | 5700 | Automatic Feeding Machine | ||
