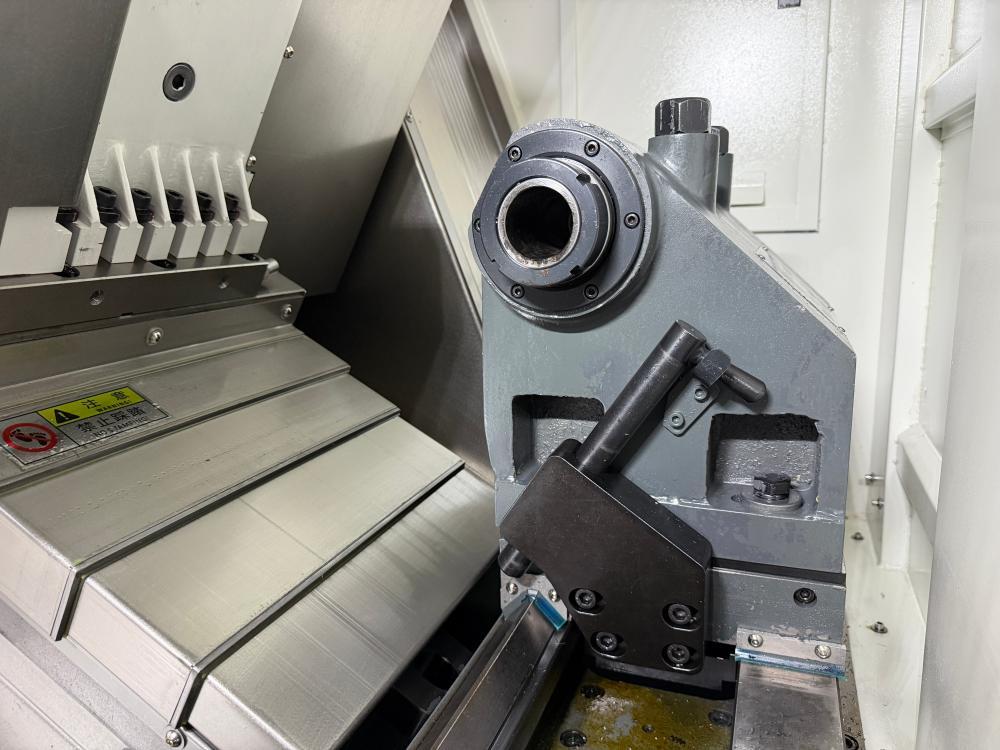

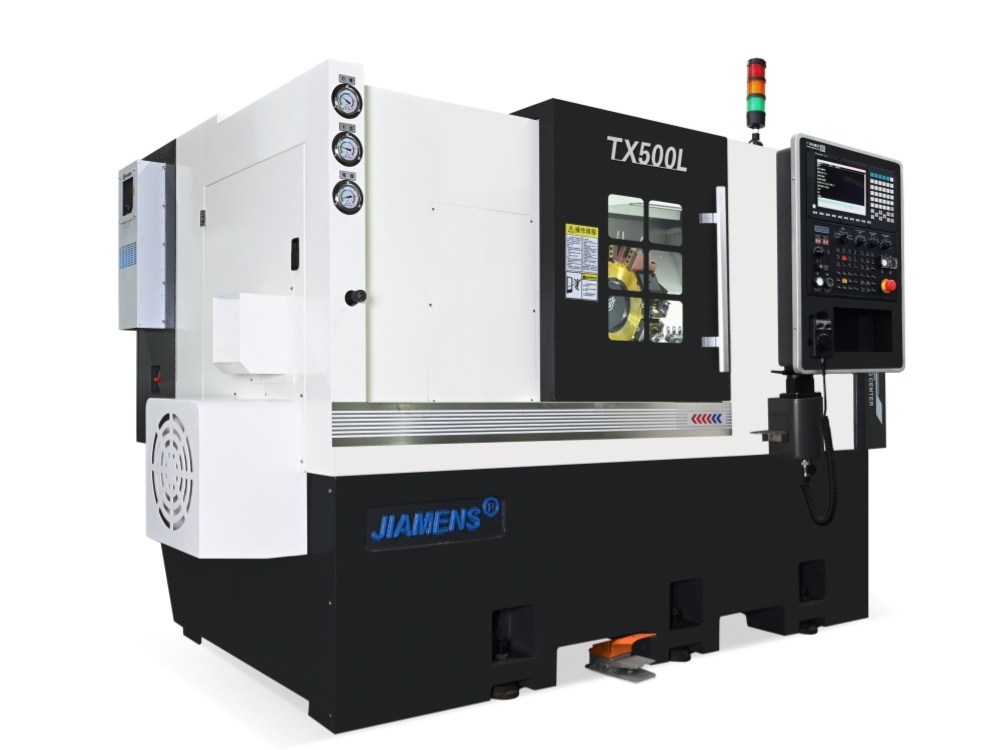

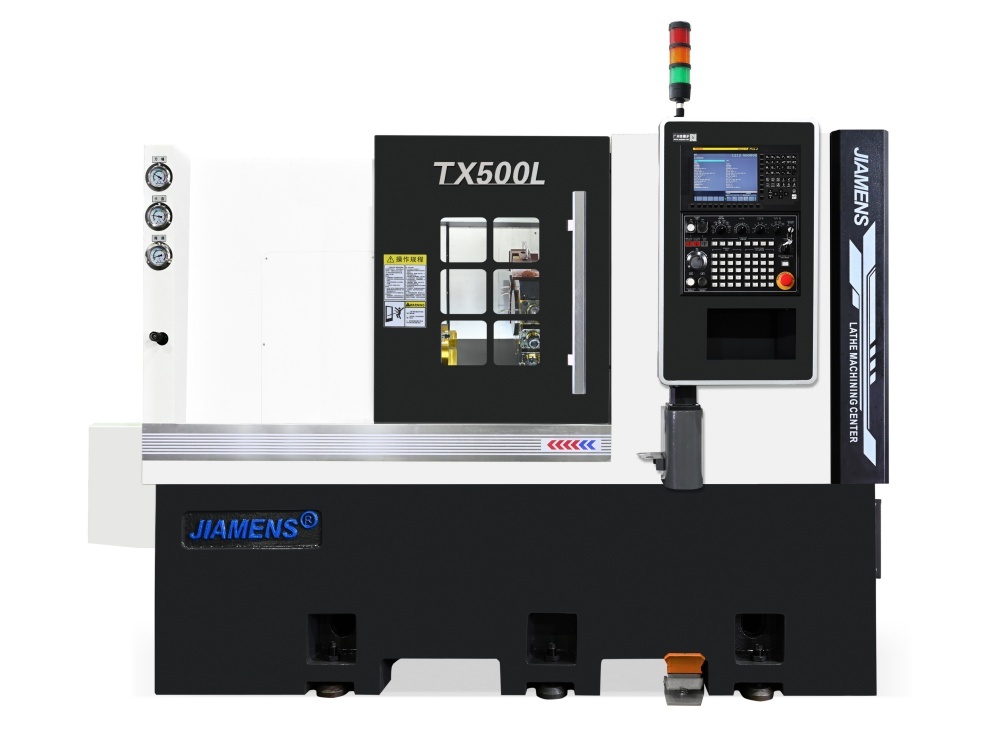

The TX500L is a Horizontal CNC Turning Center (without Y-axis) developed by JIAMENS based on standardized and modular design concepts. It adopts a 30° slant-bed structure together with a high-rigidity driven tool turret to realize compound machining for turning, milling and cutting operations. The spindle motor is flange-mounted to enhance rigidity, and the machine provides various high-precision turning functions and automatic control capabilities. Roller linear guideways are equipped, and the tailstock with triangular guideway for traversing movement effectively reduces vibration and structural deformation, improving the machine’s rigidity and machining accuracy. Beyond the standard functions of a CNC lathe, the machine can perform face milling, drilling, tapping, straight-groove milling, helical-groove milling and gear milling. Featuring integrated turning, milling and boring capabilities, it delivers the process philosophy of complete-part-machining in a single clamping.
| Parameter | Optional Equipment | |||
|---|---|---|---|---|
| Item | Name | Value | Item | Options |

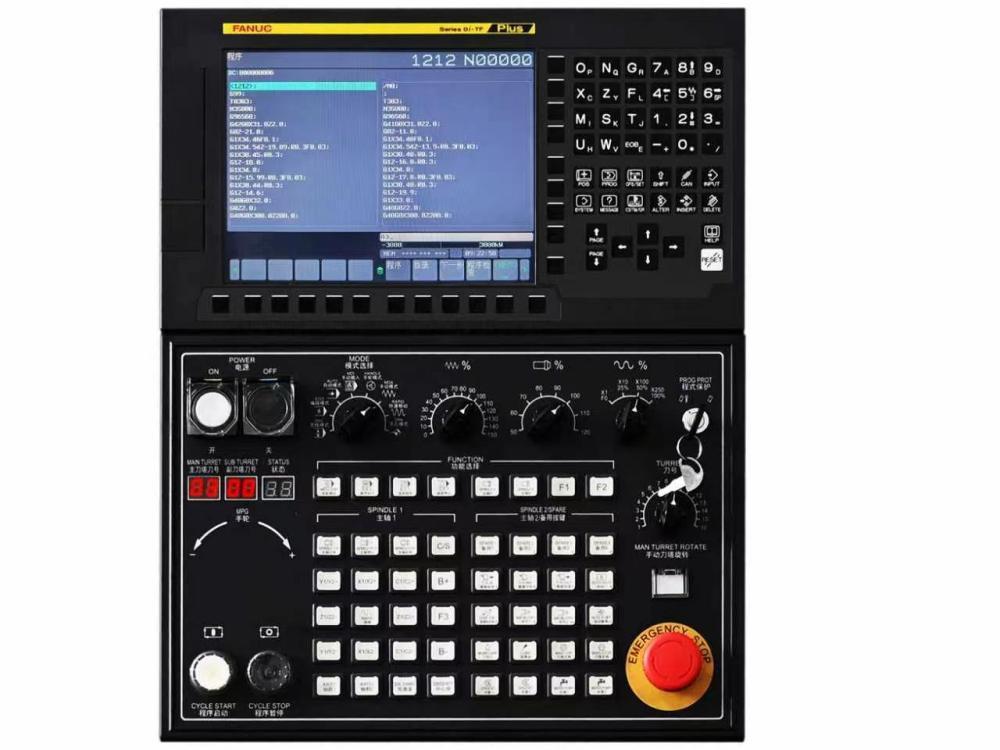

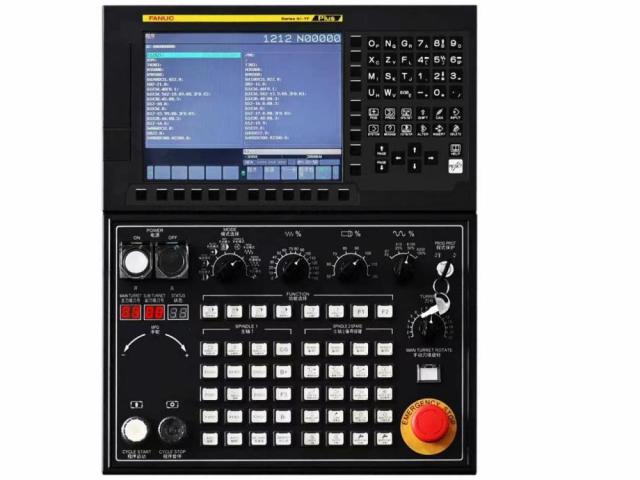

| Capacity | Swing Over Bed(mm) | Φ560 | CNC SYSTEM | FANUC |
| Max. Turning Diameter (Chuck-type parts) (mm) | Φ260 | SYNTEC | ||
| Max. Turning Length(mm) | 450 | GSK | ||
| Max. Bar Capacity through Spindle Bore (mm) | Φ52 | Spindle | VOLIS | |
| Distance Between Centers (mm) | 600 | HAINA | ||
| Travel |
X-Axis Travel (mm) | 220 | DENEARN | |
| Z-Axis Travel (mm) |
610 |
Roller Linear Guideway |
PMI | |
| Spindle | Spindle Nose Type | A2-6 | HIWIN | |
| Spindle Bore Diameter (mm) | Φ66 | THK | ||
| Max. Spindle Speed(rpm) | 4500 | Ball Screw |
PMI | |
| Spindle Motor Power(kW) | 11 | HIWIN | ||

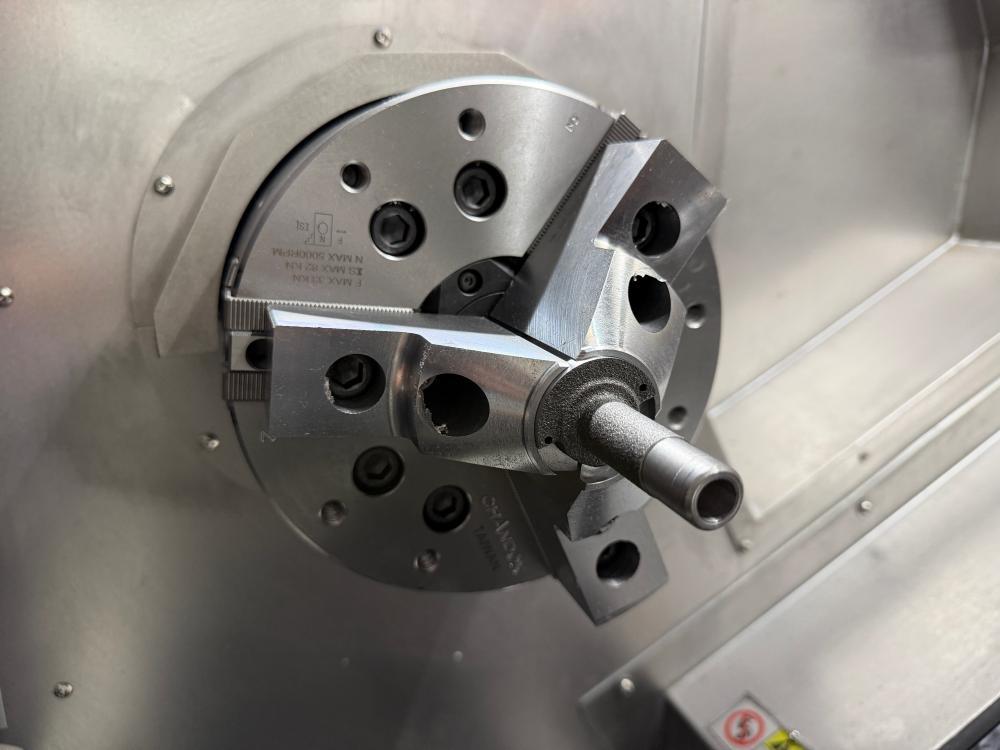

| Chuck & Rotary Cylinder Specification | 8" |
THK |
||
| Accuracy | X, Z Axis Positioning (mm) | ±0.004 | Auxiliary Extension |
Truss Manipulator |
| X, Z Axis Positioning Repeatability (mm) | ±0.002 | |||
| Powered Turret | Number of Turret Stations | 12 stations | Articulated Robot |
|
| Tool Shank Size | □25*25 | |||
| Boring Bar Size(mm) | Φ32 | Parts Catcher | ||
| Driven Tool Holder Size | BMT55/ER32 | Automatic Chip Conveyor |
||
| Size/Weight | Machine Dimensions (L×W×H) (mm) | 2570*1810*1710 | ||
| Net Weight(kg) | 4200 | Automatic Feeding Machine | ||
