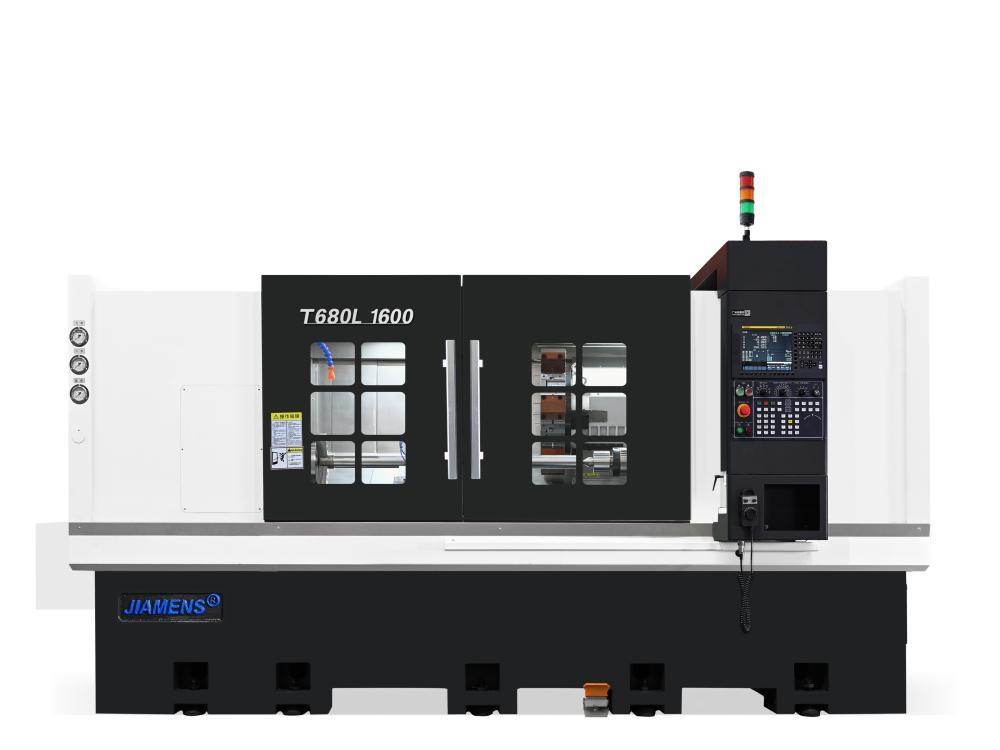

The T680L-1600 is a turret-type CNC turning lathe developed by JIAMENS with standardized and modular design concepts, featuring a high-rigidity and high-stability bed structure. Equipped with a high-power, high-torque spindle, its main motor is flange-mounted for improved rigidity. Combined with a servo turret, the machine delivers a full range of high-precision turning functions and automatic control performance.
It adopts a 30° slant-bed structure with roller linear guideways, and six sliding blocks are arranged on the Z-axis roller linear guide. The tailstock travels along triangular guideways, which effectively suppress vibration and deformation to enhance machine rigidity and machining accuracy.
The T680L-1600 supports machining of internal & external surfaces, tapered surfaces, arcs, threads, boring and reaming for shaft-type and disc-type workpieces. It is also capable of various turning operations including non-circular curve machining, making it well-suited for multi-variety and small-to-medium-batch production.

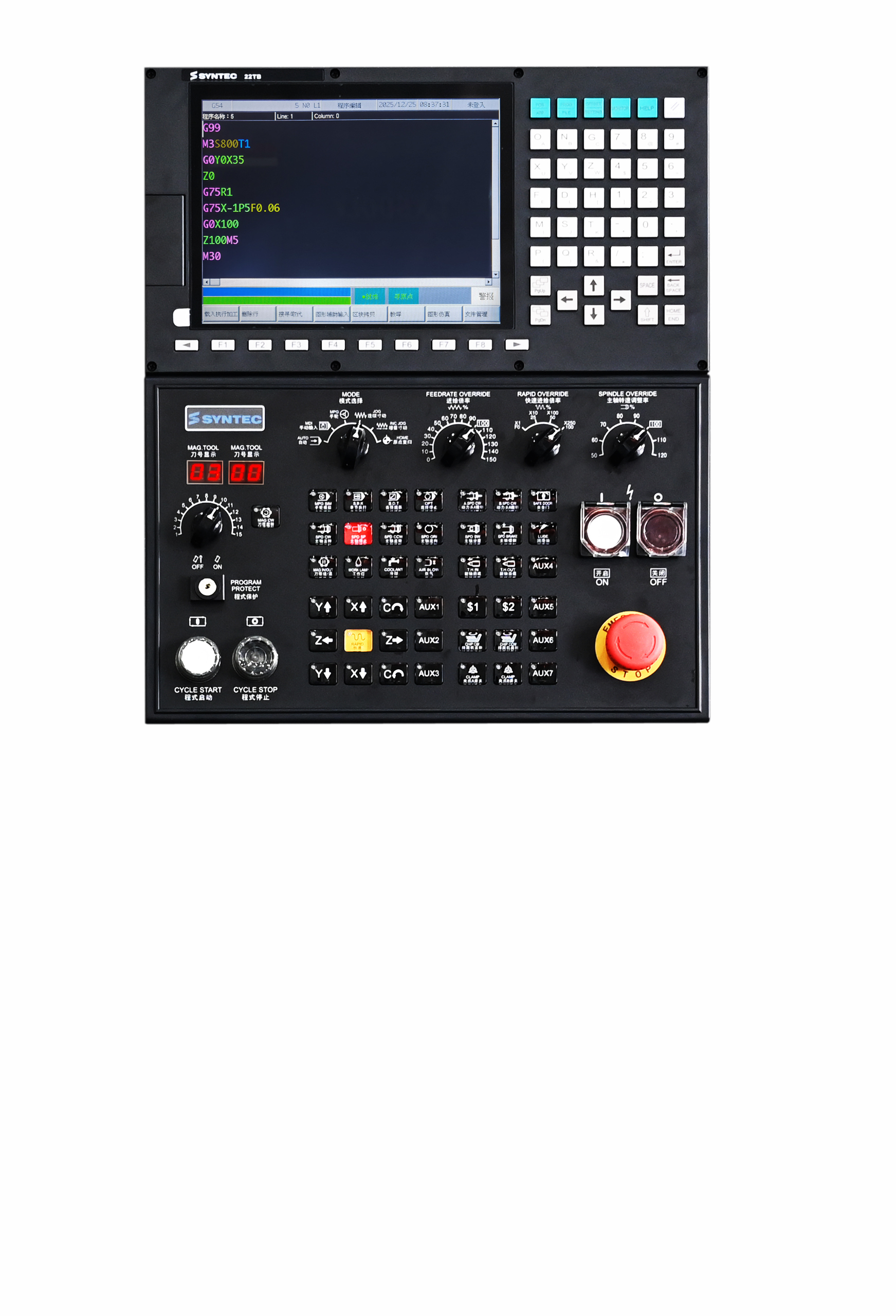

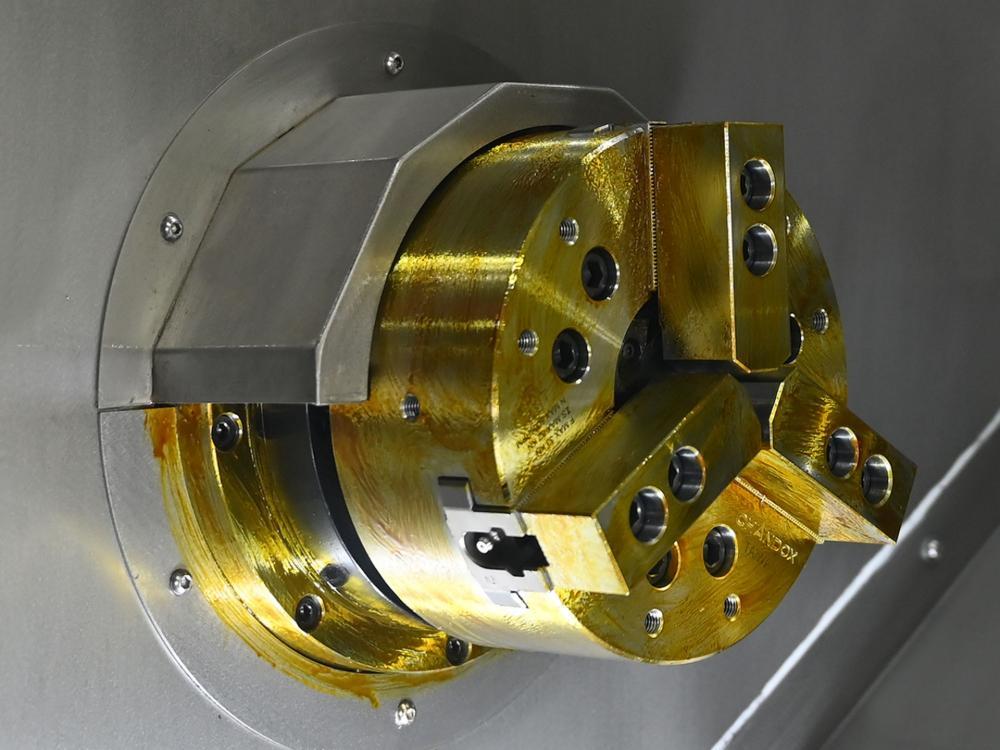

| Parameter | Optional Equipment | |||
|---|---|---|---|---|
| Item | Name | Value | Item | Options |
| Capacity | Swing Over Bed(mm) | Φ720 | CNC SYSTEM | FANUC |
| Max. Turning Diameter (Chuck‑type parts)(mm) | Φ580 | SYNTEC | ||
| Max. Turning Length(mm) | 1680 | GSK | ||
| Max. Bar Capacity through Spindle Bore (mm) | Φ75 | Spindle | VOLIS | |
| Distance Between Centers(mm) | 1800 | HAINA | ||
| Travel | X-Axis Travel(mm) | 325 | DENEARN | |
| Z-Axis Travel(mm) | 1700 | Roller Linear Guideway | PMI | |
| Spindle | Spindle Nose Type | A2-8 | HIWIN | |
| Spindle Bore Diameter(mm) | Φ86 | THK | ||
| Max. Spindle Speed(rpm) | 3000 | Ball Screw | PMI | |
| Spindle Motor Power(kW) | 18.5 | HIWIN | ||
| Chuck & Rotary Cylinder Specification | 10" | THK | ||
| Accuracy | X,Z Axis Positioning(mm) | ±0.004 | Auxiliary Extension |
Truss Manipulator |
| X,Z Axis Positioning Repeatability(mm) | ±0.002 | |||

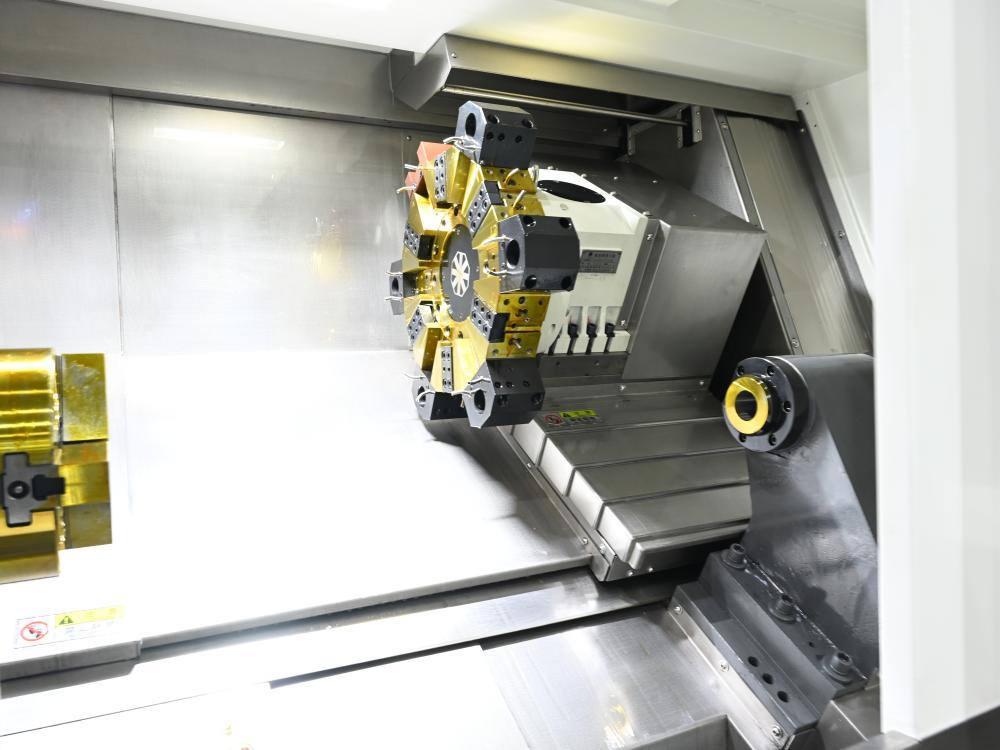

| Servo tool turret | Number of Turret Stations | 12 stations | Articulated Robot | |
| Tool Shank Size | □32*32 | Automatic Chip Conveyor | ||
| Boring Bar Size(mm) | Φ50 | Parts Catcher | ||
| Size/Weight |
Machine Dimensions (L×W×H)(mm) | 4300*2170*1980 | Tool setter | |
| Net Weight(kg) | 8300 | Automatic Feeding Machine |
||
